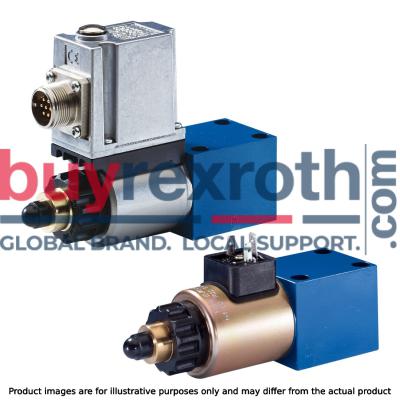

PROPORTIONAL PRESSURE RELIEF VALVE DBET-6X/50G24K4V
Manufacturer: Bosch Rexroth
Material #: R901000842
Model : DBET-6X/50G24K4V
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth DBET-6X/50G24K4V (R901000842) is a high-performance industrial hydraulic valve designed for reliable pressure limitation in accordance with the command value signal. This direct-actuated proportional pressure relief valve features a spool symbol P T and is capable of handling a maximum pressure of 350 bar. It is equipped with an electrical connection that conforms to EN 175301-803, featuring a connector pole with PE functionality.
With its size 6 CETOP D subplate mounting design, this valve offers ease of integration into various hydraulic systems. The connection diagram adheres to both NFPA T3.5.1 R2 and ISO 4401 standards, ensuring broad compatibility. The DBET-6X/50G24K4V operates on a supply voltage of 24 VDC and includes an electrical connector that matches the specifications of the valve's electrical requirements.
With a maximum flow capacity specified by the manufacturer, this valve accommodates a range of fluid types including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR. Its construction includes FKM seals for enhanced durability against aggressive media.
The Bosch Rexroth DBET series valves are recognized for their precise control capabilities enabled by the proportional solenoid operation. The solenoid features a central thread and detachable coil for maintenance convenience. Users can adjust system pressures steplessly due to the valve's responsive design to electrical command values.
Additionally, the device offers user-friendly features such as individually adjustable ramps for both upward and downward settings and fine-tuning options for the command value pressure characteristic curve. With its robust design and advanced control features, the Bosch Rexroth DBET-6X/50G24K4V valve is an essential component for sophisticated hydraulic systems requiring precise pressure regulation.
$1,615.00 USD
More are expected on April 9, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 9, 2025 when ordered in
This product is eligible for factory repair.
Size 6, P → T, electrical with external amplifier, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable limitation of the pressure to the command value signal.
Unpacked Weight: 1.42 kg
Direct operated valve for limiting a system pressure Proportional solenoid operation Proportional solenoid with central thread and detachable coil For subplate mounting: Porting pattern according to ISO 4401 Amplifier in modular design, Euro-card format and as plug-in amplifier Individually adjustable upwards and downwards ramp, fine adjustment of the command value pressure characteristic curve
General information
Proportional pressure relief valves of type DBET are remote control valves with seat design and are used for system pressure limitation. Operation by means of a proportional solenoid with central thread and detachable coil. The interior of the solenoid is connected to port T or Y and is filled with the hydraulic fluid. Dependent on the electric command value, these valves can be used to steplessly set the system pressure to be limited. The valves mainly consist of the housing (1), a proportional solenoid (2), the valve seat (3) and the valve poppet (4).
Basic principle
For the setting of the system pressure, a command value is specified at the control electronics. Dependent on the command value, the electronics actuate the solenoid coil with electric current. The proportional solenoid converts the electric current into mechanical force that acts on the valve poppet (4) via the armature plunger (5). The valve poppet (4) pushes onto the valve seat (3) and blocks the connection between port P and T or Y. If the hydraulic force on the valve poppet (4) equals the solenoid force, the valve controls the set pressure by lifting the valve poppet (4) off the valve seat (3) and thus enabling hydraulic fluid to flow from port P to T or Y. If the command value is zero, the control electronics only apply the minimum control current to the proportional solenoid (2) and the minimum set pressure is set.
Type DBET
(measured with HLP46, ϑOil = 40 ±5 °C)
Pressure in port P dependent on the command value (flow = 0.8 l/min)
| 1) | 1) With valve type DBET, the manufacturing tolerance at the external amplifier can be changed using the command value attenuator potentiometer "Gw". The digital amplifier is set using the "Limit” parameter. Here, the control current according to the technical data must not be exceeded. In order to be able to adjust several valves to the same characteristic curve, do not set the pressure higher than the maximum set pressure of the pressure rating with command value 100%. |
Pressure in port P dependent on command value /Comparison DBET series 5X-6X / Pressure rating 200 bar (with amplifier VT-VSPA-1-1X with 800 mA coil)
Current drop with increasing ambient temperature, 24 V and 100% duty cycle
| 1) |
Notice: With increased temperature, the solenoid current will drop. Thus, the set pressure differs accordingly. |
Pressure rating 50 bar
Pressure rating 100 bar
Pressure rating 200 bar
Pressure rating 315 bar
| 1) | In case of characteristic curve 5, the command value may not exceed the maximum flow of 1.4 l/min |
Pressure rating 350 bar
| 1) | In case of characteristic curve 5, the command value may not exceed the maximum flow of 0.8 l/min |
Pressure rating 420 bar
| 1) | In case of characteristic curve 5, the command value may not exceed the maximum flow of 0.8 l/min |
Pressure rating 50 bar
Pressure rating 100 bar
Pressure rating 200 bar
Pressure rating 315 bar
Pressure rating 350 bar
Pressure rating 420 bar
Notice:
The characteristic curves were measured without counter pressure in port T. (Pt = 0 bar)
Minimum control current ≤ 100 mA
(This current is reached with a command value of 0 V and/or 4 mA.)
Pilot oil return, internal
Pilot oil return, external
Connection at mating connector
Connection at the connector
Dimensions in mm
|
1 |
Proportional solenoid |
|
2 |
Valve housing |
|
3 |
Name plate |
|
4 |
Identical seal rings for ports A, B, P, and T |
|
5 |
mating connector according to DIN EN 175301-803 |
|
6 |
Space required to remove the mating connector |
|
7 |
Blind counterbores A and B |
|
8 |
With version ..Y.. (external pilot oil return) port Y is internally connected to port T. Port T is not plugged. |
|
9 |
Machined valve contact surface; porting pattern according to ISO 4401-03-02-0-05 |
Recommended valve mounting screws (separate order):
4 hexagon socket head cap screws ISO 4762 - M5 x 45 - 10.9-flZn-240h-L
Tightening torque MA = 7 Nm ± 10%; material no. R913000140
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
