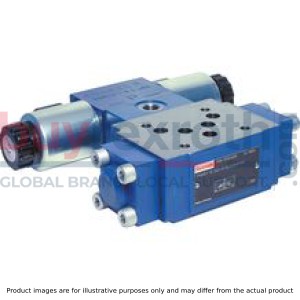

DIRECTIONAL SPOOL VALVE Z4WEH10E63-4X/6EG24NETK4/B10
Manufacturer: Bosch Rexroth
Material #: R900977314
Model : Z4WEH10E63-4X/6EG24NETK4/B10
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z4WEH10E63-4X/6EG24NETK4/B10 (R900977314) is a high-performance industrial hydraulic valve designed for reliable control of oil flow direction in hydraulic systems. This solenoid-actuated directional spool valve, featuring a pilot-operated design with Spool symbol E, ensures precise operation under various conditions. It operates at a maximum pressure and is equipped with an electrical connector pole PE according to EN 175301-803, which provides a secure and stable connection.
The Z4WEH10E63-4X/6EG24NETK4/B10 valve comes with a size 10 porting pattern compliant with ISO standards, ensuring compatibility with a wide range of hydraulic systems. It has multiple ports and offers the flexibility of electrohydraulic actuation, making it suitable for complex applications. The maximum flow rate through the valve is specified to match the demands of various hydraulic circuits.
Designed for versatility, this Bosch Rexroth valve can function as either a shutoff through the valve or a shutoff short-circuit through the valve, with P and T ports allowing free flow in every spool position. The unit features wet-pin DC or AC solenoids that can be optionally selected based on system requirements. Additionally, it offers optional features such as an auxiliary operating device, switching time adjustment, stroke setting at the main spool, and inductive position switches or proximity sensors for contactless operation.
It has been engineered to work effectively with multiple types of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC. The seals are made from NBR to ensure durability and resistance against fluid leaks. With its robust construction and comprehensive capabilities, this Bosch Rexroth hydraulic valve stands out as an essential component for sophisticated hydraulic applications requiring precise control and reliability.
$2,360.00 USD
More are expected on April 24, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 24, 2025 when ordered in
This product is eligible for factory repair.
Size 10, symbol E63, with solenoid actuation, 24 VDC
Industrial hydraulic valve in the medium performance range. Reliable switching of the oil flow direction according to hydraulic symbol
Unpacked Weight: 4.450 kg
Directional spool valve, pilot-operated Type of actuation: electro-hydraulic Functioning as shut-off through valve or shut-off short-circuit through valve P and T free flow in every spool position Porting pattern according to ISO 4401-05-04-0-05 Wet-pin DC or AC solenoids, optional Optional auxiliary operating device Electrical connection as individual or central connection, see RE 23178 Switching time adjustment, optional Stroke setting at main spool, optional Inductive position switch and proximity sensors (contactless)
|
➀ |
component side |
|
➁ |
plate side |
general
|
Size |
10 | ||
|
Weight |
Valve with one solenoid |
kg |
4.2 |
|
Valve with two solenoids |
kg |
4.6 | |
|
Switching time adjustment |
kg |
0.8 | |
|
3-way pressure reducing valve |
kg |
0.4 | |
|
Plate for version "T" |
kg |
0.5 | |
|
Installation position |
any | ||
|
Ambient temperature ranges (NBR seals) |
°C |
-30 … +50 | |
|
Ambient temperature ranges (FKM seals) |
°C |
-20 … +50 | |
hydraulic
|
Size |
10 | |||
|
Maximum operating pressure |
Port P |
External pilot oil supply |
bar |
315 |
|
Internal pilot oil supply (without pressure reducing valve) |
bar |
250 | ||
|
Internal pilot oil supply (with pressure reducing valve) |
bar |
315 | ||
|
Anschluss A |
bar |
315 | ||
|
Port B |
bar |
315 | ||
|
Port T |
with DC solenoid |
bar |
210 | |
|
with AC solenoid |
bar |
160 | ||
|
Maximum flow |
l/min |
160 | ||
|
Minimum pilot pressure |
bar |
12 | ||
|
Pilot volume for switching process |
cm³ |
1.3 | ||
|
Hydraulic fluid 1) |
see table | |||
|
Hydraulic fluid temperature range (NBR seals) |
°C |
-30 … +80 | ||
|
Hydraulic fluid temperature range (FKM seals) |
°C |
-20 … +80 | ||
|
Viscosity range |
mm²/s |
2.8 … 500 | ||
|
Maximum admissible degree of contamination of the hydraulic fluid 2) |
Class 20/18/15 according to ISO 4406 (c) | |||
| 1) | The ignition temperature of the process and operating medium used must be over the maximum solenoid surface temperature. |
| 2) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
|
Hydraulic fluid |
Classification |
Suitable sealing materials |
Standards |
|
|
Mineral oil |
HL, HLP |
NBR, FKM |
DIN 51524 |
|
|
Fast bio-degradable hydraulic fluids |
VDMA 24568 |
|||
|
Environmentally compatible |
Insoluble in water |
HETG |
NBR, FKM |
|
|
HEES |
FKM |
|||
|
Soluble in water |
HEPG |
NBR, FKM |
||
|
Other hydraulic fluids on request |
||||
electrical
|
Switching time according to ISO 6403 |
At pilot pressure |
bar |
70 | 140 | 210 | |||
|
Voltage type |
Direct voltage | AC voltage | Direct voltage | AC voltage | Direct voltage | AC voltage | ||
|
On |
ms |
65 | - | 60 | - | 55 | - | |
|
ms |
- | 30 | - | 25 | - | 20 | ||
|
Off |
ms |
- | 30 | - | 30 | - | 30 | |
|
ms |
30 | - | 30 | - | 30 | - | ||
Notices!
Actuation of the manual override is only possible up to a tank pressure of approx. 50 bar. Avoid damage to the bore of the manual override! (Special tool for the operation, separate order, material no. R900024943). When the manual override is blocked, the actuation of the solenoid must be prevented! The simultaneous actuation of the solenoids must be prevented!Inductive position switch type QM: electrical connection
electrical
|
Connection voltage (DC voltage) |
V |
24 | ||
|
Voltage tolerance (connection voltage) |
+30 %/-15 % | |||
|
Admissible residual ripple |
% |
≤ 10 | ||
|
Max. load capacity |
mA |
400 | ||
|
Switching outputs
|
PNP transistor outputs, load between switching outputs and GND | |||
|
Pinout
|
1 |
V |
24 | |
|
2, 4 |
Switching output |
mA |
400 | |
|
3 |
Earthing (GND) |
V |
0 | |
The electric connection is realized via a 4-pole mating connector (separate order) with connection thread M12 x 1.
For applications outside these parameters, please consult us!
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
E62
Version "ET"
E62
Version "T"
E63
Version "ET"
E63
Version "T"
E68
Version "ET"
E68
Version "T"
E501)
Version "ET"
| 1) | Opening cross-section in spool position "a" (A2 → B2) = 50 mm2 |
E50
Version "T"
| 1) | Opening cross-section in spool position "a" (A2 → B2) = 50 mm2 |
E51
Version "ET"
E51
Version "T"
E521)
Version "ET"
| 1) | Opening cross-section in spool position "b" (A2 → B2) = 35 mm2 |
E52
Version "T"
| 1) | Opening cross-section in spool position "b" (A2 → B2) = 35 mm2 |
|
➀ |
component side |
|
➁ |
plate side |
Inductive position switch type QM Switching logics
Version QMA
(Position switch on side B, monitored spool position of the main stage "a")
Version QMA
(Position switch on side B, monitored spool position of the main stage "a")
Version QMB
(Position switch on side A, monitored spool position of the main stage "b")
Version QMB
(Position switch on side A, monitored spool position of the main stage "b")
version QMAB
(Position switch on side A and B, monitored spool position "a" and "b")
Version QM0
(Position switch on side A and B, monitored spool position "0")
| 1) No signal change at the position switch on side B with spool position "a" | |
| 2) No signal change at the position switch on side A with spool position "b" |
Version QM0
(Position switch on side B, monitored spool position of the main stage "0")
Version QM0
(Position switch on side A, monitored spool position of the main stage "0")
Dimensions in mm
|
1 |
Name plate complete valve |
|
2 |
Name plate pilot control valve |
|
3 |
Main valve |
|
4 |
Sandwich plate for external pilot control (use for operating pressure > 210 bar) |
|
5 |
Pressure reducing valve "D3" (to be used for pilot pressures above 250 bar)Material no.:NBR seals: R900323180FKM seals: R900323664 |
|
6 |
Space required to remove the mating connector |
|
7 |
Switching time adjustment (throttle check valve); dependent on supply or discharge control installation position (representation: supply control) |
|
8 |
R-ring plate |
|
9 |
Pilot control valve- Type 4WE 6 J.. at symbol E62- Type 4WE 6 Y.. at symbol E50, E51, E52, E63, E68Dimensions () for valve with AC solenoid |
|
10 |
Dimension for valve without manual override |
|
11 |
Dimension for valve with manual override "N";Dimensions () for valve with AC solenoid |
|
12 |
Dimension for valve with concealed manual override "N9"; dimensions () for valve with AC solenoid without manual override |
|
13 |
Solenoid "a" and "b" (rotatable by 90°) |
|
14 |
Identical seal rings for ports A, B, P, TA and TB |
|
15 |
Identical seal rings for ports A, B, P and T |
|
17 |
Valve mounting bores Valve mounting screws (separate order) 4 hexagon socket head cap screws ISO 4762 - M6 - 10.9 |
|
18 |
Valve mounting screws (separate order)4 hexagon socket head cap screws ISO 4762 - M5 - 10.9 |
Notice!
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted.
|
Mounting options |
L1 |
L2 |
|
mm |
mm |
|
| Stroke setting on side A and B | 95 | 149 |
| Stroke setting on side A | 95 | - |
| Stroke setting on side B | - | 149 |
Stroke setting, mounting options
The stroke of the main spool is limited by the stroke setting.
The piston stroke is shortened by untightening the lock nut (17) and clockwise rotation of the adjustment spindle (18). For this, the control chamber has to be depressurized.
Stroke 6 mm (1 rotation = 1 mm stroke)
|
17 |
Lock nut SW27 |
|
18 |
Adjustment spindle, internal hexagon SW5 |
Spool position monitoring
Notice:
The dimensions are nominal dimensions which are subject to tolerances.
Dimensions in mm
Inductive position switch type QM
Type Z4WEH 10
Dimensions in mm
|
Mounting options: |
||||
|
Monitored spool position |
Ordering code |
Position switch on side |
||
|
„a“ |
„b“ |
"a" and "b" |
||
|
„a“ |
QMAG24 |
X |
||
|
„b“ |
QMBG24 |
X |
||
|
"a" and "b" |
QMABG24 |
X |
||
Stroke setting, mounting options
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
