4WRZ 10 W50-7X/6EG24N9ETK4/M

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

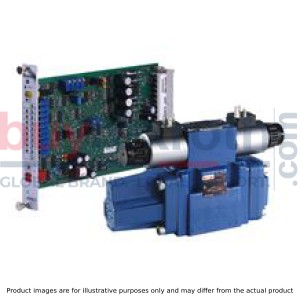

The Bosch Rexroth 4WRZ 10 W50-7X/6EG24N9ETK4/M (R900765488) is a high-performance pilot-operated proportional directional valve designed to control the direction and magnitude of flow in hydraulic systems. This model is characterized by its precise actuation via proportional solenoids, ensuring smooth and accurate control for various applications. The valve includes a main control spool with a centering spring, which remains in a central position when the solenoids are deenergized, maintaining system stability. The main control spool's movement is dictated by the pilot control valve, which responds proportionally to electrical input signals. When activated, pilot oil is directed into the pressure chamber through the pilot control valve, causing a proportional deflection of the main control spool. This allows for controlled connection between ports P to A and B to T through orifice-type cross-sections with progressive flow characteristics, ensuring efficient operation. For versatility in supply options, the pilot oil can be provided internally via port P or externally via port X. In addition to its primary functions, this model comes with an optional manual override feature that allows manual adjustment of the control spool without solenoid energization; however, users should be cautious as accidental activation may lead to unintended machine movements. Designed for subplate mounting and conforming to ISO porting patterns, this Bosch Rexroth valve does not include integrated electronics OBE but offers reliable performance for controlling hydraulic flows. It features spring-centered control spools and is equipped with an additional port R only NG. Users should also be aware that due to its design principle, some internal leakage may occur over time. In summary, the Bosch Rexroth 4WRZ 10 W50-7X/6EG24N9ETK4/M (R900765488) stands out as a robust solution for precise hydraulic flow direction and size management in various applications requiring meticulous control without electronic integration.
