R900727967

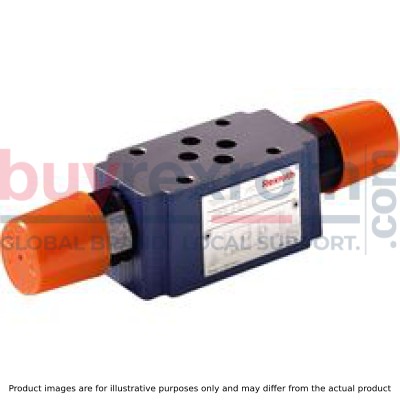

THROTTLE CHECK VALVE Z2FS6-2-4X/2QV/60

Manufacturer: Bosch Rexroth

Material #: R900727967

Model : Z2FS6-2-4X/2QV/60


***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z2FS6-2-4X/2QV/60 (R900727967) is a high-performance industrial hydraulic valve designed for reliable throttling of flow to a set value. This direct-actuated valve features a setscrew with lock nut as its standard setting mechanism and includes mounting bores for locating pins in accordance with ISO standards, ensuring precise and secure installation. The spool symbol options for this valve are A A, B B or A A, B B, mechanically actuated, which provides versatility in application use. The Z2FS6-2-4X/2QV/60 is a twin throttle check valve that operates by limiting flows in one direction while allowing free return flow in the opposite direction. This functionality makes it suitable for both main or pilot flow limitation tasks. Its design includes two throttle check valves aligned symmetrically to each other, providing consistent performance in controlling actuator speeds. Equipped with a maximum pressure capability and an NFPA T.. R D size CETOP D connection diagram, this sandwich plate valve conforms to international standards including DIN and ISO porting patterns. It offers various adjustment types such as setscrew with lock nut and protective cap, lockable rotary knob with scale, spindle with internal hexagon and scale, and rotary knob with scale. The Bosch Rexroth Z2FS6-2-4X/2QV/60 has multiple applications including supply or discharge throttling and can be installed between directional valves and subplates for actuator velocity adjustment or between pilot control valves and main valves for switching time adjustment. Its seals are made of FKM material compatible with various hydraulic fluids like HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR offering flexibility in fluid selection based on system requirements. The product's weight is specified alongside the maximum operating pressure (bar) and maximum flow (l/min), ensuring users can select the appropriate valve based on their system's parameters.

$403.00 USD

Availability:  3  In Stock
  Add to Cart
Available for immediate shipment


Qty: Delivered as early as April 19, 2024 when ordered in

This product is eligible for factory repair.
