HY-CHECK VALVE SL10PA1-4X/

Manufacturer: Bosch Rexroth

Material #: R900483371

Model : SL10PA1-4X/M

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth SL10PA1-4X/M (R900483371) is a high-performance industrial hydraulic seat valve designed for reliable blocking of oil flow at selected ports. It is ideally suited for applications that require the leakage-free blocking of one actuator port, even during extended periods of standstill. The valve features a pilot-operated design with an external pilot oil return and is capable of being flown through from A to B without external pilot pressure, while in the opposite direction, it closes hydraulically tight. The construction of the SL10PA1-4X/M includes a housing, a seat poppet with an optional preopening feature as a ball seat valve, a compression spring, and a control spool. The presence of preopening allows for dampened decompression and avoidance of switching shocks, which can contribute to reduced wear and noise in system components. This model also has the flexibility to be modified to type SL by exchanging plugs. This particular model comes with NBR seals and is compatible with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. It has been designed for subplate mounting with porting patterns according to ISO standards NG6, NG10, NG16 for subplate mounting or threaded connection. Additional features include an attachment possibility for directional spool valve or directional seat valve (optional), various cracking pressures (optional), check valve installation sets available individually, and a corrosion-protected design. The maximum operating pressure for this component series X is 315 bar with a maximum flow rate of 80 l/min. The Bosch Rexroth SL10PA1-4X/M (R900483371) is engineered to provide secure and efficient operation in demanding hydraulic systems where precise control over fluid flow is essential.

$1,028.00 USD

Availability: 65 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as November 18, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

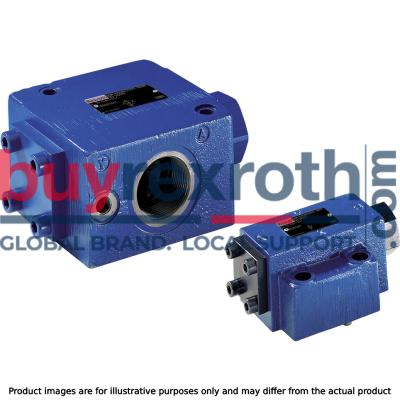

HY-CHECK VALVE SL10PA1-4X/

Size 10, A → B, hydraulically actuated

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.

Unpacked Weight: 1.9 kg

For subplate mounting Porting pattern according to ISO 5781-06-07-0-00 (NG10), ISO 5781-08-10-0-00 (NG20), ISO 5781-10-13-0-00 (NG32) For threaded connection For the leakage-free blocking of one actuator port Attachment possibility for directional spool valve or directional seat valve, optional Pilot oil return, external Version with pre-opening for dampened release, optional Various cracking pressures, optional Check valve installation sets available individually Corrosion-protected design

The isolator valve type SL is a releasable check valve for subplate mounting or threaded connection. It is used for the leakage-free blocking of one actuator port, also in case of longer standstill times.

The valve basically consists of a housing (1), a seat poppet (2), a compression spring (3), a control spool (4) as well as of an optional pre-opening as ball seat valve (5).

The seat valve can be flown through from A to B without external pilot pressure. In the opposite direction, the seat valve closes hydraulically tight.

Condition: pA > pB + cracking pressure (compression spring).

A sufficiently high pilot pressure at port X moves the control spool (4) in the direction of the ball seat valve (5) (version "A") and pushes the seat poppet (2) out of its seat. This allows for a free flow in both directions (active keeping open).

In order to ensure that the seat valve actively opens, the pressure ratios on both sides of the control spool (4) are just as important as the area ratios at the control spool (4) or seat poppet (2).

This results in the versions with pre-opening "A" and without pre-opening "B” for type SL (small annulus area). A4 (9).

Version "A" (with pre-opening)

This valve is provided with an additional pre-opening. By pressurization at the X port, the control spool (4) is moved to the right. As a result, the ball (5) is pushed off the seat first and the seat poppet (2) afterwards.

Notes:

Version "A”: The two-stage set-up with an increased control open ratio means even low pilot pressure can be unloaded securely. Avoidance of switching shocks due to dampened decompression of the pressure volume on the actuator side. Version "B”: In case of valves without pre-opening, the included pressure volume may be unloaded suddenly. Resulting switching shocks may lead to premature wear on installed components, as well as noise formation.

Type SL..PB.-4X/... (with pilot oil return, without pre-opening)

6	Area A1 (seat poppet)
7	Area A2 (ball)
8	AreaA 3 (control spool)
9	Area A4 (control spool)

Notice:

The modification of type SV to type SL is possible by exchange of plugs (10) and (11). One of the both plugs must always be installed.

NG	Plug (10)	Plug (11)
10	M3	M6
20	M4	M6
30	M4	M6

Version "6U" (with built-on directional valve)

At direct operated, pilot operated check valves type SL with built-on directional valve, the control spool (4) may be controlled directly via the directional valve to open the seat poppet (2) against the system pressure, i.e. the blocking direction.

Notice:

When ordering the directional valve, please observe the different position of port A at versions "P" and "G" (porting pattern rotated by 180° at version "G", see "Dimensions").

Type SL..PB.-4X/6U... (with pilot oil return, without pre-opening)

6	Area A1 (seat poppet)
8	AreaA 3 (control spool)
9	Area A4 (control spool)

Seat valve
Pilot-operated
External pilot oil return
Maximum operating pressure 315 bar
Size 10 … 32
Maximum flow 550 l/min
Component series 4X

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Spool symbol	A → B
Max. pressure	315
Electrical connection description	Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101
Productgroup ID	9,10,11,12,13,14
Number of ports	2
Type of actuation	with hydraulic actuation
Size	10
Max. flow	150
Type of connection	Subplate mounting
Connection diagram	ISO 5781-06-07-0-16
Number of switching positions	2
Weight	1.9
Seals	NBR
Hydraulic fluid	HL,HLP,HLPD,HVLP,HVLPD,HFC

01	02	03	04	05	06		07		08	09		10	11	12	13	14	15	16	17	18	19	20
S	L					–	4X	/			–											*

01	Check valve	S
02	Pilot oil return, external	L
03	Size 10	10
	Size 20	20
	Size 32	30
Type of connection
04	Subplate mounting	P
04	Threaded connection	G
05	With pre-opening	A
05	Without pre-opening	B
Cracking pressure
06	See characteristic curves (A → B)	1
		2
		3
		4
07	Component series 40 … 49 (40 … 49: unchanged installation and mounting dimensions)	4X
08	Without attachment possibility for directional spool or seat valve	no code
08	With attachment possibility for directional spool or seat valve (NG6)	6U 1)
Spool position monitoring
09	Without position switch	no code
	With position switch 2)	QMG24
	For more information see "Electrical connection"
Orifice fitting channel A (version "6U" only)
10	Orifice Ø0,8 mm in channel A (standard)	A08
10	Orifice Ø** in channel A 3)	A**
Orifice fitting channel B (version "6U" only)
11	Channel B closed (standard)	B99
11	Orifice Ø** in channel B 3)	B**
Orifice fitting channel T (version "6U" only)
12	Without orifice (standard)	T00
12	Orifice Ø** in channel T 3)	T**
Orifice fitting channel P (version "6U" only)
13	Without orifice (standard)	P00
13	Orifice Ø** in channel P 3)	P**
Orifice fitting channel X (version "6U" only)
14	Channel X closed (standard)	X99
14	Orifice Ø** in channel X 3)	X**
Orifice fitting channel Y
15	Channel Y open (standard)	Y00
15	Orifice Ø** in channel Y 3)	Y**
Seal material
16	NBR seals	N
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Corrosion resistance
17	None	no code
17	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3
18	Standard	no code
	Pilot pressure ppilot from channel X	SO168
	Control open spool with shaft sealing (between channel X–Y and Y–A)	SO286
Connection thread (versions with threaded connection "G" only)
19	Pipe thread "G" according to ISO 228-1	no code
19	Pipe thread “UNF/UN” according to ANSI/ASME B 1.1	/12
20	Further details in the plain text	*

1)	Only size 20 and 32
2)	Only version "B3"
3)	Order example: ** = dimension in mm x 10 – e.g. orifice Ø1,2 mm in channel Y = "Y12"

general

Size			10	20	32
Weight	Subplate mounting	kg	1.8	4.7	7.8
	Threaded connection	kg	2.1	5.4	10
Installation position			any
Ambient temperature range	NBR seals	°C	-30 … +80
	FKM seals	°C	-20 … +80
MTTFD values according to EN ISO 13849 1)		Years	150
Maximum storage time 2)		Months	12

1)	For further details, see data sheet 08012
2)	If the storage conditions are observed; refer to the operating instructions 07600-B

hydraulic

Size			10	20	32
Maximum operating pressure		bar	315
Cracking pressure		bar	1.5 / 3 / 6 / 10	2.5 / 5 / 7.5 / 10	2.5 / 5 / 8 / 10
Minimum pilot pressure		bar	5
Maximum pilot pressure		bar	315
Maximum flow			See characteristic curves
Direction of flow			Free from A → B, from B → A by opening
Hydraulic fluid			see table below
Hydraulic fluid temperature range	NBR seals	°C	-30 … +80
	FPM seals	°C	-20 … +80
Viscosity range		mm²/s	2.8 … 500
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1)			Class 20/18/15
Pilot volume	Port X	cm³	2.5	10.8	19.27
	Port Y	cm³	2	9.6	17.5
Control area A1 2)		cm²	1.33	3.46	5.72
Control area A2 2)		cm²	0.33	0.7	1.33
Control area A3 2)		cm²	3.8	10.17	16.61
Control area A4 2)		cm²	0.79	1.13	1.54

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.
2)	Areas according to sectional drawing, see "Product description"

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oils		HL, HLP, HLPD, HVLP, HVLPD	NBR, FKM	DIN 51524	90220
Bio-degradable	Insoluble in water	HETG 1)	NBR, FKM	ISO 15380	90221
	Insoluble in water	HEES 1)	FKM	ISO 15380
	Soluble in water	HEPG 1)	FKM	ISO 15380
Flame-resistant	Water-free	HFDU (glycol base)	FKM	ISO 12922	90222
		HFDU (ester base) 1)	FKM
		HFDR	FKM
	Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620) 1)	NBR	ISO 12922	90223
Important information on hydraulic fluids: For more information and data on the use of other hydraulicfluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature. Flame-resistant - containing water: Maximum pressure differential 210 bar, otherwise, increased cavitation erosion Life cycle as compared to operation with mineral oil HL, HLP 30 … 100%. Maximum hydraulic fluid temperature 60 °C Bio-degradable and flame-resistant – containing water: If this hydraulic fluid is used, small amounts of dissolved zinc may get into the hydraulic system.

1)	Not recommended for corrosion-protected version "J3" (contains zinc)

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

Subplate mounting

Δp-qV characteristic curves

Size 10

Δp-qV characteristic curves

Size 20

Δp-qV characteristic curves

Size 32

Pilot pressure/load pressure characteristic curves

Without pre-opening

Pilot pressure/load pressure characteristic curves

With pre-opening

Threaded connection

Δp-qV characteristic curves

Size 10

Δp-qV characteristic curves

Size 20

Δp-qV characteristic curves

Size 32

Pilot pressure/load pressure characteristic curves

Without pre-opening

Pilot pressure/load pressure characteristic curves

With pre-opening

Calculation of the pilot pressure pSt dependent on pA and pB

Version “A” (with pre-opening)
Balance of forces:

Detailed formula

Simplified formula (Assumption pA = 0)

Version "B" (without pre-opening)
Balance of forces:

Simplified formula (Assumption pA = 0)

pA*	Type-dependent (for type SL: pA* = 0)
pSt	Pilot pressure
pA	Working pressure in A
pB	Working pressure in B
pF	Cracking pressure (spring)
A1 – A4	For areas see sectional drawing below "product description" and control area ratios below "technical data"

Pilot oil return, external

Version "SO168"

Version "SL …6U"

With directional spool valve type 4WE 6 D…

Version "SL …6U"

With directional spool valve type 4WE 6 Y…

Version "SL …6U"

With directional seat valve type M-3SEW 6 C…

Version "SL …6U"

With directional seat valve type M-3SEW 6 U…

Circuit examples

Function: "Load locking"; inlet side unloading

Function: Unlocking with external pilot pressure (version "SO168")

Inductive position switch type QM

The electrical connection is realized via a 4-pole mating connector (separate order, see "Accessories") with connection thread M12 x 1.

Connection voltage:	24 V +30 %/-15 %, direct voltage
Admissible residual ripple:	≤ 10 %
Load capacity:	maximum 400 mA
Switching outputs:	PNP transistor outputs, load between switching outputs and GND
Pinout:	1	+24 V
	2	Switching output: 400 mA
	3	0 V, GND
	4	Switching output: 400 mA

Switching logics

Subplate mounting


Required surface quality of the valve contact surface

1	Port Y open
2	Name plate
3	Locking pin
4	Identical seal rings for ports A and B Identical seal rings for ports X and Y
5	Valve with cracking pressure Version "1" and "2" (dimension L2)
6	Valve with cracking pressure version "3" and "4" (dimension L3)
7.1	6 valve mounting bores at NG32
8	Porting pattern according to ISO 5781
9	Version without position switch Tightening torque MA = 40 Nm (NG10), screwed in - medium-strength thread locker; Tightening torque MA = 70 Nm (NG20 and 30), screwed in - medium-strength thread locker
10	Version with position switch "QMG24" (circuitry see "Electrical connection")

NG	L1	L2	L3	L4	L5	L6	L7	L8	L9	L10	L11	L12	L13	L14	B1	B2	B3	B4	B5	B6	H1	H2	H3
NG	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
10	100.8	15.5	15.5	87.8	13	42.9	18.5	7.2	35.8	21.5	21.5	-	31.8	105	84	66.7	44	58.8	7.9	33.3	51	29	36
20	135	17.7	47.7	117	18	60.3	27.5	11.1	49.2	39.5	20.6	-	44.5	96.5	100	79.4	67	73	6.4	39.7	81	45	55
32	156.1	36.1	46.1	134	22.1	84.2	39	16.7	67.5	59.5	24.6	42.1	62.7	117	118	96.8	75	92.8	3.8	48.4	85	42.5	70

Valve mounting screws (separate order)

Size	Quantity	Hexagon socket head cap screws	Material number
10	4	ISO 4762 - M10 x 50 - 10.9 Tightening torque MA = 75 Nm ±20 %	-
20	4	ISO 4762 - M10 x 70 - 10.9 Tightening torque MA = 75 Nm ±20 %	-
32	6	ISO 4762 - M10 x 85 - 10.9 Tightening torque MA = 75 Nm ±20 %	-

Notice:

The specified tightening torques were calculated with total friction coefficient μtotal = 0.09 ... 0.14; adjust in case of modified surfaces.

Subplates (separate order)

with porting pattern according to ISO 5781-06-07-0-00 (NG10), ISO 5781-08-10-0-00 (NG20), ISO 5781-10-13-0-00 (NG32) see data sheet 45100.

Threaded connection

1	Port Y open
2	Name plate
5	Valve with cracking pressure Version "1" and "2" (dimension L2)
6	Valve with cracking pressure version "3" and "4" (dimension L3)
7.2	2 valve mounting bores
9	Version without position switch Tightening torque MA = 40 Nm (NG10), screwed in - medium-strength thread locker; Tightening torque MA = 70 Nm (NG20 and 30), screwed in - medium-strength thread locker
10	Version with position switch "QMG24" (circuitry see "Electrical connection")

NG	L1	L2	L3	L4	L5	L6	L7	L8	L9	L10	L11	B1	B2	B3	H1	H2
NG	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
10	100.8	15.5	15.5	87.8	13	56.5	10.5	33.5	22.5	17.3	105	87	66.7	33.4	44	22
20	133	17.7	47.7	115	18	74.5	17	50.5	36	27	96.5	105	79.4	39.7	68	34
32	156.1	35.7	45.7	134	22.1	101	24	84	49	18	117	130	96.8	48.4	85	42.5

Ports

NG	A	B	X	Y
NG	"G"	"UNF/UN"	"G"	"UNF/UN"
10	G1/2	3/4-16 UNF	G1/4	7/16-20 UN
20	G1	1 5/16-12 UN	G1/4	7/16-20 UN
32	G1 1/2	1 7/8-12 UN	G1/4	7/16-20 UN

Valve mounting screws (separate order)

Size	Quantity	Hexagon socket head cap screws	Material number
10	2	ISO 4762 - M10 x 60 - 10.9	-
20	2	ISO 4762 - M10 x 85 - 10.9	-
32	2	ISO 4762 - M10 x 100 - 10.9	-

Version "6U", subplate mounting

Dimensions in mm


Required surface quality of the valve contact surface

1	Port Y open
2	Name plate
3	Locking pin
4	Identical seal rings for ports A and B Identical seal rings for ports X and Y
5	Valve with cracking pressure Version "1" and "2" (dimension L2)
6	Valve with cracking pressure version "3" and "4" (dimension L3)
7.1	6 valve mounting bores at NG32
8	Porting pattern according to ISO 5781
10	Version with position switch "QMG24" (circuitry see "Electrical connection")
11	Directional seat valve type M-3SEW 6 ... (data sheet 22058)
12	Directional spool valve type 4WE 6 ... (data sheet 23178)
13	Porting pattern according to ISO 4401-03-02-0-05

NG	L1	L2	L3	L4	L5	L6	L7	L8	L9	L10	L11	L12	L13	L14	B1	B2	B3	B4	B5	B6	B7	H1	H2	H3
NG	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
20	135	17.7	47.7	117	18	60.3	27.5	11.1	49.2	39.7	20.6	-	44.5	96.5	100	79.4	61	73	6.4	39.7	11	81	45	55
32	156.1	36.1	46.1	134	22.1	84.2	39	16.7	67.5	-	24.6	42.1	62.7	117	118	96.8	75	92.8	-	48.4	11	85	42.5	70

Valve mounting screws (separate order)

Size	Quantity	Hexagon socket head cap screws	Material number
10	4	ISO 4762 - M10 x 50 - 10.9 Tightening torque MA = 75 Nm ±20 %	-
20	4	ISO 4762 - M10 x 70 - 10.9 Tightening torque MA = 75 Nm ±20 %	-
32	6	ISO 4762 - M10 x 85 - 10.9 Tightening torque MA = 75 Nm ±20 %	-

Notice:

The specified tightening torques were calculated with total friction coefficient μtotal = 0.09 ... 0.14; adjust in case of modified surfaces.

Subplates (separate order)

with porting pattern according to ISO 5781-06-07-0-00 (NG10), ISO 5781-08-10-0-00 (NG20), ISO 5781-10-13-0-00 (NG32) see data sheet 45100.

Version "6U", threaded connection

Dimensions in mm

1	Port Y open
2	Name plate
5	Valve with cracking pressure Version "1" and "2" (dimension L2)
6	Valve with cracking pressure version "3" and "4" (dimension L3)
7.1	6 valve mounting bores at NG32
7.2	2 valve mounting bores
10	Version with position switch "QMG24" (circuitry see "Electrical connection")
11	Directional seat valve type M-3SEW 6 ... (data sheet 22058)
12	Directional spool valve type 4WE 6 ... (data sheet 23178)
13	Porting pattern according to ISO 4401-03-02-0-05

NG	L1	L2	L3	L4	L5	L6	L7	L8	L9	L10	L11	L12	B1	B2	B3	B4	H1	H2
NG	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
20	133	17.7	47.7	115	18	74.5	17	50.5	36	27	53	96.5	105	79.4	39.7	8.25	68	34
32	156.1	35.7	45.7	134	22.1	101	24	84	49	18	59	117	130	96.8	48.4	3.25	85	42.5

Ports

NG	A	B	X	Y
NG	"G"	"UNF/UN"	"G"	"UNF/UN"
20	G1	1 5/16-12 UN	G1/4	7/16-20 UN
32	G1 1/2	1 7/8-12 UN	G1/4	7/16-20 UN

Valve mounting screws (separate order)

Size	Quantity	Hexagon socket head cap screws	Material number
10	2	ISO 4762 - M10 x 60 - 10.9	-
20	2	ISO 4762 - M10 x 85 - 10.9	-
32	2	ISO 4762 - M10 x 100 - 10.9	-

Connection adapter / reducing pieces

Material number	Male thread	Internal thread	Seal (separate order)
Material number	Male thread	Internal thread	NBR	FKM
R900173685	G1	G3/4	R900012475	R900012509
R900173689	G1 1/2	G1 1/4	R900012477	R900012511

Spare parts & repair

HY-CHECK VALVE SL10PA1-4X/

Manufacturer: Bosch Rexroth

Material #: R900483371

Model : SL10PA1-4X/M

Availability: 65 In Stock

This product is eligible for factory repair.

Type SL..PB.-4X/... (with pilot oil return, without pre-opening)

Version "6U" (with built-on directional valve)

Type SL..PB.-4X/6U... (with pilot oil return, without pre-opening)

general

hydraulic

(measured with HLP46, ϑOil = 40 ±5 °C)

Subplate mounting

Δp-qV characteristic curves

Δp-qV characteristic curves

Δp-qV characteristic curves

Pilot pressure/load pressure characteristic curves

Pilot pressure/load pressure characteristic curves

Threaded connection

Δp-qV characteristic curves

Δp-qV characteristic curves

Δp-qV characteristic curves

Pilot pressure/load pressure characteristic curves

Pilot pressure/load pressure characteristic curves

Calculation of the pilot pressure pSt dependent on pA and pB

Pilot oil return, external

Version "SO168"

Version "SL …6U"

Version "SL …6U"

Version "SL …6U"

Version "SL …6U"

Circuit examples

Function: "Load locking"; inlet side unloading

Function: Unlocking with external pilot pressure (version "SO168")

Inductive position switch type QM

Switching outputs:

Pinout:

Switching logics

Subplate mounting

Valve mounting screws (separate order)

Threaded connection

Valve mounting screws (separate order)

Version "6U", subplate mounting

Valve mounting screws (separate order)

Version "6U", threaded connection

Valve mounting screws (separate order)

Connection adapter / reducing pieces

Related Products

Information

Account
