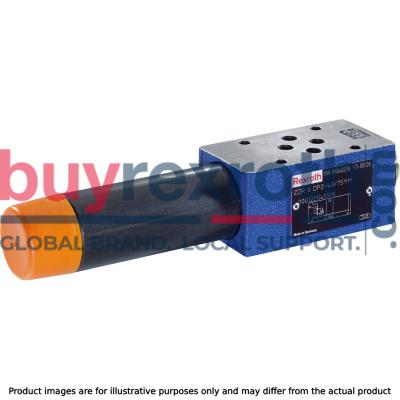

PRESSURE RED.VALVE INTERMEDIATE PLATE ZDR6DP2-4X/150YMV
Manufacturer: Bosch Rexroth
Material #: R900476331
Model : ZDR6DP2-4X/150YMV
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth ZDR6DP2-4X/150YMV (R900476331) is a high-performance industrial hydraulic valve designed for reliable pressure reduction to a predefined setting value. This direct-operated spool valve is part of the size 6 series and features a maximum operating pressure of 315 bar with a maximum flow rate of 80 l/min. It comes equipped with a mechanical actuation mechanism and can be integrated seamlessly into systems via its sandwich plate connection, adhering to both NFPA T3.5.1 R2 D03 and ISO 4401 porting patterns.
The ZDR6DP2-4X/150YMV offers various adjustment types for setting the secondary pressure, including a rotary knob, sleeve with hexagon and protective cap, lockable rotary knob with scale, or a rotary knob with scale. The valve's construction includes housing, control spool, compression spring, and an optional check valve that allows for free flow back from channel A to A in version A only.
This model is versatile in its application; it can reduce pressure in channel A, B or P depending on the version selected (A, P or B). It also provides internal control signal and pilot oil supply from the corresponding channels. The design includes an external leakage oil drain from the spring chamber and offers a corrosion-protected design for durability in harsh environments.
Furthermore, it accommodates various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU and HFDR while ensuring constant pressure regulation through its advanced design features. The ZDR6DP2-4X/150YMV also supports monitoring through its pressure gauge connection point.
In summary, this Bosch Rexroth sandwich plate valve provides precise secondary pressure control in hydraulic systems where high performance and reliability are essential. Its robust construction and flexibility make it suitable for a wide range of applications without compromising on efficiency or safety.
$676.00 USD
Availability: 2 In Stock
Available for immediate shipmentQty: Delivered as early as November 18, 2024 when ordered in
This product is eligible for factory repair.
Size 6, P2 → P1, mechanical
Industrial hydraulic valve in a high performance range. Reliable pressure reduction to setting value.
Unpacked Weight: 1.460 kg
Sandwich plate valve Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole) 4 pressure ratings 4 adjustment types:
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale Pressure reduction in channel A, B or channel P Check valve, optional (version “A” only) Corrosion-protected design
The valve type ZDR is a direct operated pressure reducing valve in sandwich plate design with pressure limitation of the secondary circuit. It is used to reduce the system pressure.
The pressure reducing valve basically comprises housing (1), control spool (2), compression spring (3), adjustment type (4) and an optional check valve.
The secondary pressure is set via the adjustment type (4).
Version "A"
The valve is open in initial position. Hydraulic fluid can flow from channel A➀ to channel A➀ without restrictions. The pressure in channel A➀ is simultaneously applied via the control line (5) at the piston area opposite the compression spring (3). If the pressure in channel A➀ exceeds the value set at the compression spring (3), the control spool (2) is pushed against the compression spring (3) to control position and keeps the set pressure in channel A➀ at a constant level.
Control signal and pilot oil are supplied internally via the control line (5) from channel A➁.
If the pressure in channel A➀ increases further due to an external force effect at the actuator, it pushes the control spool (2) even further against the compression spring (3).
In this way, channel A➀ is connected to the tank via the control edge (9) at the control spool (2) and the housing (1). So much hydraulic fluid is discharged into the tank that the pressure does not increase any further.
The leakage oil drain from the spring chamber (7) is always effected externally via the bore (6) and channel T (Y).
A pressure gauge connection (8) allows for the control of the secondary pressure at the valve.
A check valve can be used for free flow back from channel A➀ to A➀ with version “A”.
Versions “P” and “B”
For version “P”, the pressure reduction is effected in channel P➀. Control signal and pilot oil are supplied internally from channel P➀.
For version “B”, the pressure is reduced in channel P➀; but the pilot oil is extracted from channel B.
Notice:
If the directional valve is in spool position P to A, the pressure in channel B may not exceed the set secondary pressure. Otherwise, there is pressure reduction in channel A.
Type ZDR 6 DA1-4X/.YM…
|
① |
component side |
|
② |
plate side |
(measured with HLP46, ϑOil = 40 ±5 °C)
pA-qV characteristic curves
Version "A"
pA-qV characteristic curves
Version "B" and "P"
Δpmin-qV characteristic curves
Version "A"
Δpmin-qV characteristic curves
Version "B" and "P"
Δp-qV characteristic curves
Notices:
The curve development is maintained if the pressure is set lower according to the pressure rating. The characteristic curves apply to the pressure at the valve output pT = 0 bar across the entire flow range.Version "P...YM"
Version "A...YM"
Version "B…YM"
Version "A...Y"
|
① |
component side |
|
② |
plate side |
Version "A"
Dimensions in mm
|
|
Required surface quality of the valve contact surface |
|
➀ |
component side – porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole); (with locating hole Ø3 x 5 mm deep) |
|
➁ |
plate side – Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole); (with locating hole Ø3 x 5 mm deep for locking pin ISO 8752-3x8-St, material no. R900005694, separate order) |
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type "2" |
|
4 |
Adjustment type "3" |
|
5 |
Adjustment type "7" |
|
6 |
Space required to remove the key |
|
7 |
Valve mounting bores |
|
8 |
Lock nut SW24 |
|
9 |
Hexagon SW10 |
|
10 |
Identical seal rings for ports A, B, P, T (Y) |
|
11 |
Pressure gauge connection G1/4; 12 mm deep; internal hexagon SW6 |
Valve mounting screw (separate order)
4 hexagon socket head cap screws ISO 4762-M5-10.9
Notices:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve. The dimensions are nominal dimensions which are subject to tolerances.Version "B" and "P"
Dimensions in mm
|
|
|
Required surface quality of the valve contact surface |
|
➀ |
component side – porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole); (with locating hole Ø3 x 5 mm deep) |
|
➁ |
plate side – Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole); (with locating hole Ø3 x 5 mm deep for locking pin ISO 8752-3x8-St, material no. R900005694, separate order) |
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type "2" |
|
4 |
Adjustment type "3" |
|
5 |
Adjustment type "7" |
|
6 |
Space required to remove the key |
|
7 |
Valve mounting bores |
|
8 |
Lock nut SW24 |
|
9 |
Hexagon SW10 |
|
10 |
Identical seal rings for ports A, B, P, T (Y) |
|
11 |
Pressure gauge connection G1/4; 12 mm deep; internal hexagon SW6 |
Valve mounting screw (separate order)
4 hexagon socket head cap screws ISO 4762-M5-10.9
Notices:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve. The dimensions are nominal dimensions which are subject to tolerances.Related Products
