PRESSURE RELIEF VALVE DB 10 K2-4X/200YV
Manufacturer: Bosch Rexroth
Material #: R900438123
Model : DB 10 K2-4X/200YV
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth DB 10 K2-4X/200YV (R900438123) is a high-performance pressure relief valve, pilot operated, designed for screw-in cartridge valve systems. It is engineered to serve as a system pressure limiter, ensuring safe operation by controlling the maximum hydraulic system pressure. This particular model boasts a maximum operating pressure of 350 bar (5076 psi) and can accommodate a maximum flow rate of NG10 at 200 l/min (52.8 gpm).
The DB 10 K2-4X/200YV features a cavity Mx and utilizes FKM sealing material for enhanced durability and chemical resistance. The valve operates with a pilot oil supply that is internal and has an external pilot oil return mechanism. It employs a poppet-type spool, which contributes to the valve's reliability and consistent performance.
This product falls under the product family classification of pilot-operated pressure relief valves and is identified by its unique product group ID. The adjustment options available for setting system pressure include a sleeve with hexagon and protective cap, which allows users to easily modify the settings while providing protection against accidental adjustments.
The valve's construction allows it to work effectively with various hydraulic fluids including HL, HLP, HEES, and HEPG types. Weighing in at .7 kg, this model exemplifies Bosch Rexroth's commitment to producing robust components that maintain precision in regulating hydraulic pressures within complex systems.
In summary, the Bosch Rexroth DB 10 K2-4X/200YV is an essential component for applications requiring precise control over hydraulic system pressure limits. Its robust design and versatile adjustment options make it suitable for integration into various hydraulic circuits where reliable performance is paramount.
$337.20 USD
Availability: 13 In Stock
Available for immediate shipmentQty: Delivered as early as November 18, 2024 when ordered in
This product is eligible for factory repair.
Pressure relief valve, pilot operated
Unpacked Weight: 0.3276 kg
Cartridge valve 4 pressure ratings 4 optional adjustment types:• Rotary knob• Sleeve with hexagon and protective cap• Lockable rotary knob with scale• Rotary knob with scale
Pressure valves type DB..K.. are pilot-operated pressure relief valves for block design installation. They are used for system pressure limitation. The system pressure can be set via the adjustment type (4).

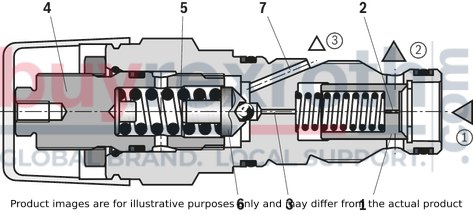

In the initial position the valves are closed. The pressure in main port 1 acts on the spool (1). At the same time, pressure is applied to the spring-loaded side of the spool (1) via nozzle (2) and to the pilot poppet (6) via nozzle (3). If the pressure in main port 1 exceeds the value set at spring (5), the pilot poppet (6) opens. Hydraulic fluid flows from the spring-loaded side of the spool (1) via nozzle (3) and channel (7) into the main port 3. The resulting pressure drop moves the spool (1) and thus opens the connection from main port 1 to 2 while maintaining the pressure set at spring (5).
Die pilot oil return from the two spring chambers is effected externally, via main port 3.
Notice!
Counter pressures (main port 3) add up to the set pressure.
Type DB 10 K2-4X/.YV
(measured with HLP46, ϑOil = 40 ±5 °C)
NG6

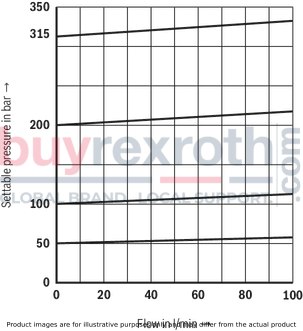

pE-qV characteristic curves
NG6
pE min-qV characteristic curves
Attention!
The characteristic curves apply for output pressure = zero in the entire flow range!
NG10
pE-qV characteristic curves
NG10
pE min-qV characteristic curves
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T) |
|
➂ |
Main port 3 (Y) |

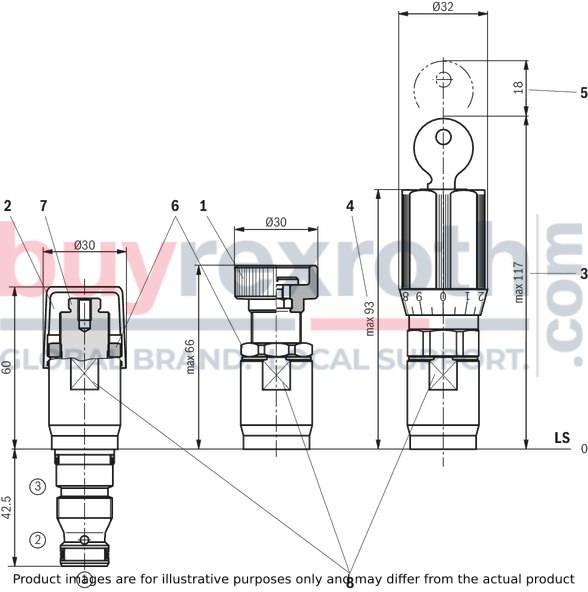

NG6
Dimensions in mm
|
1 |
Adjustment type "1" |
|
2 |
Adjustment type "2" |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
Space required to remove the key |
|
6 |
Lock nut SW24 |
|
7 |
Hexagon SW10 |
|
8 |
Wrench size SW24, tightening torque for screw-in MA = 50 Nm |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T) |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T), can optionally be arranged at the circumference |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
NG6; 3 main ports; thread M20 x 1
Dimensions in mm
|
1 |
Adjustment type "1" |
|
2 |
Adjustment type "2" |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
Space required to remove the key |
|
6 |
Lock nut SW24 |
|
7 |
Hexagon SW10 |
|
8 |
Wrench size SW24, tightening torque for screw-in MA = 50 Nm |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T) |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T), can optionally be arranged at the circumference |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |

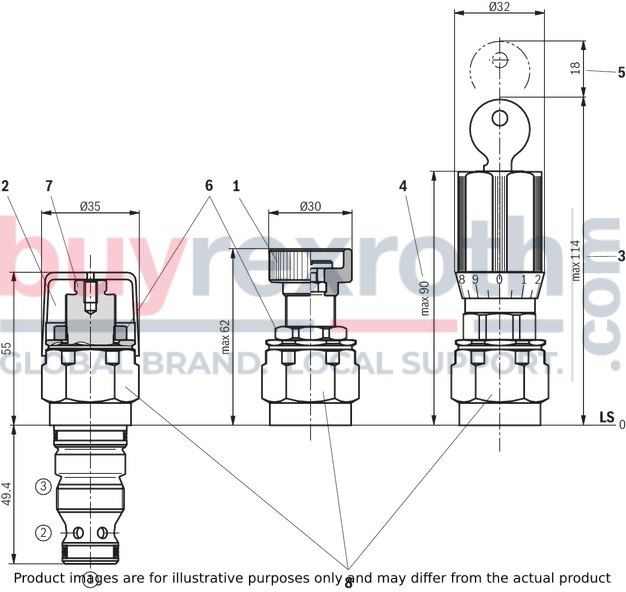

NG10
Dimensions in mm
|
1 |
Adjustment type "1" |
|
2 |
Adjustment type "2" |
|
3 |
Adjustment type "3" |
|
4 |
Adjustment type "7" |
|
5 |
Space required to remove the key |
|
6 |
Lock nut SW24 |
|
7 |
Hexagon SW10 |
|
8 |
Hexagon SW30, tightening torque for screw-in MA = 50 Nm |
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T) |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
Mounting cavity – NG10; 3 main ports; thread M20 x 1
Dimensions in mm
|
➀ |
Main port 1 (P) |
|
➁ |
Main port 2 (T), can optionally be arranged at the circumference |
|
➂ |
Main port 3 (Y) |
|
LS |
Location shoulder |
