PRESSURE RELIEF VALVE -Z ZDB6VA2-4X/200V
Manufacturer: Bosch Rexroth
Material #: R900409886
Model : ZDB6VA2-4X/200V
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth ZDB6VA2-4X/200V (R900409886) is a high-performance industrial hydraulic valve designed for reliable pressure relief at a set value. This pilot-operated valve features a spool symbol A T and is mechanically actuated, ensuring precise control over system pressure. It belongs to the product group ID and is equipped with multiple ports for comprehensive fluid management.
With its robust construction, the ZDB6VA2-4X/200V can handle a maximum pressure and offers an optimal max flow rate. The type of connection is an interim assembly that follows the NFPA T..R D SizeCETOP D and ISO connection diagram standards, ensuring compatibility with various hydraulic systems.
This model has a specific number of switching positions and weighs accordingly, with FKM seals that provide excellent resistance to high temperatures and chemical exposure. The hydraulic fluid compatibility extends to HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR types.
The ZDB6VA2-4X/200V valve consists of a housing and one or two pressure valve cartridges. System pressure adjustments are made via an adjustment type mechanism. In its default state, the valve remains closed until channel A's pressure surpasses the spring-set value. This action opens the pilot poppet allowing hydraulic fluid to flow from A to T while maintaining the set pressure.
The valve's design includes options for external pilot oil drainage through channel T. Available in various configurations, it offers different adjustment types such as rotary knob or lockable rotary knob with scale for precise pressure settings. The corrosion-protected design ensures longevity even in harsh environments.
This sandwich plate valve adheres to ISO porting patterns and can be ordered with or without locating holes. It comes in different circuit options with either one or two pressure valve cartridges. Users can select from multiple adjustment types for their specific application requirements while benefiting from a component series X that supports a maximum operating pressure of bar and maximum flow of l/min.
$434.00 USD
Availability: 2 In Stock
Available for immediate shipmentQty: Delivered as early as April 30, 2024 when ordered in
This product is eligible for factory repair.
Size 6, symbol A - T, with manual actuation
Industrial hydraulic valve in a high performance range. Reliable pressure limitation to setting value
Unpacked Weight: 1.14 kg
Sandwich plate valve Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole) 4 pressure ratings 5 circuit options With 1 or 2 pressure valve cartridges 4 adjustment types for pressure adjustment, optionally
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale Corrosion-protected design

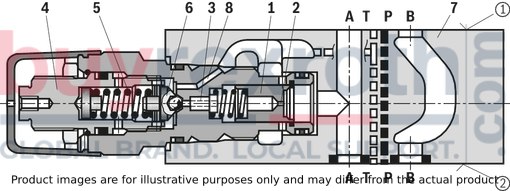

Pressure valves of type ZDB and Z2DB are pilot-operated pressure relief valves in sandwich plate design.
They are used for limiting a system pressure.
The valves basically consist of the housing (7) and one or two pressure valve cartridges.
The system pressure can be set via the adjustment type (4).
Example version "VA":
In the initial position the valves are closed. The pressure in channel A acts on the spool (1). At the same time, pressure is applied to the spring-loaded side of the spool (1) via nozzle (2) and to the pilot poppet (6) via nozzle (3). If the pressure in channel A exceeds the value set at the spring (5), the pilot poppet (6) opens.
Hydraulic fluid flows from the spring-loaded side of the spool (1), nozzle (3), channel (8) into channel T. The resulting pressure drop moves the spool (1) and thus opens the connection from A to T while maintaining the pressure set at spring (5).
Die pilot oil drain from the two spring chambers is effected externally, via channel T.

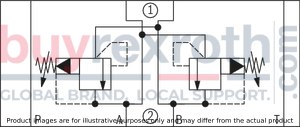

Type ZDB 6 VA2-...
➀ = component side
➁ = plate side
(measured with HLP46, ϑOil = 40 ±5 °C)
pE-qV characteristic curves
pE min-qV characteristic curves
Notice:
The characteristic curves apply to the pressure at the valve output p = 0 bar across the entire flow range.
Type ZDB 6 VA...
Type ZDB 6 VB...
Type ZDB 6 VP...
Type Z2DB 6 VC...
Type Z2DB 6 VD...
➀ = component side
➁ = plate side
Version "VA"
(dimensions im mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type "2" (with version "J3" and "J5" without protective cap) |
|
4 |
Adjustment type "3" |
|
5 |
Adjustment type "7" |
|
6 |
Dimensions required to remove the key |
|
7 |
Valve mounting bores |
|
8 |
Lock nut SW24, tightening torque MA = 10+5 Nm |
|
9 |
Hexagon SW10 |
|
10 |
Identical seal rings for ports A, B, P, T (plate side) |
|
11 |
Hexagon SW24, tightening torque MA = 50 Nm |
|
12 |
plate side – Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole); (with locating hole Ø3 x 5 mm deep for locking pin ISO 8752-3x8-St, material no. R900005694, separate order) |
|
13 |
component side – porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole); (with locating hole Ø4 x 4 mm deep) |
Version "VB" and "VP"
(dimensions im mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type "2" (with version "J3" and "J5" without protective cap) |
|
4 |
Adjustment type "3" |
|
5 |
Adjustment type "7" |
|
6 |
Dimensions required to remove the key |
|
7 |
Valve mounting bores |
|
8 |
Lock nut SW24, tightening torque MA = 10+5 Nm |
|
9 |
Hexagon SW10 |
|
10 |
Identical seal rings for ports A, B, P, T (plate side) |
|
11 |
Hexagon SW24, tightening torque MA = 50 Nm |
|
12 |
plate side – Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole); (with locating hole Ø3 x 5 mm deep for locking pin ISO 8752-3x8-St, material no. R900005694, separate order) |
|
13 |
component side – porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole); (with locating hole Ø4 x 4 mm deep) |
Version "VC" and "VD"
(dimensions im mm)
Dimensions in mm
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type "2" (with version "J3" and "J5" without protective cap) |
|
4 |
Adjustment type "3" |
|
5 |
Adjustment type "7" |
|
6 |
Dimensions required to remove the key |
|
7 |
Valve mounting bores |
|
8 |
Lock nut SW24, tightening torque MA = 10+5 Nm |
|
9 |
Hexagon SW10 |
|
10 |
Identical seal rings for ports A, B, P, T (plate side) |
|
11 |
Hexagon SW24, tightening torque MA = 50 Nm |
|
12 |
plate side – Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole); (with locating hole Ø3 x 5 mm deep for locking pin ISO 8752-3x8-St, material no. R900005694, separate order) |
|
13 |
component side – porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole); (with locating hole Ø4 x 4 mm deep) |
|
14.1 |
Version “VC” |
|
14.2 |
Version “VD” |
Valve mounting screws (separate order)
Version „J3“4 hexagon socket head cap screws ISO 4762 - M5 - 10.9-CM-Fe-ZnNi-5-Cn-T0-H-B
friction coefficient μtotal = 0,09 … 0,14
tightening torque MA = 7,4 Nm ± 10 %
Version „J5“
4 hexagon socket head cap screws ISO 4762 - M5 - 10.9-CM-Fe-ZnNi-8-Cn-T0-H-B
friction coefficient μtotal = 0,09 … 0,14
tightening torque MA = 7,4 Nm ± 10 %
Without corrosion protection
4 hexagon socket head cap screws ISO 4762 - M5 - 10.9
friction coefficient μtotal = 0,12 … 0,17
tightening torque MA = 8,1 Nm ± 10 %
