For valves with "K4" connector, 2-pole + PE, design A (large cubic connector)
Connector Rectangular
Material #: R900011039
For valves with "K4" connector, 2-pole + PE, design A (large cubic connector)

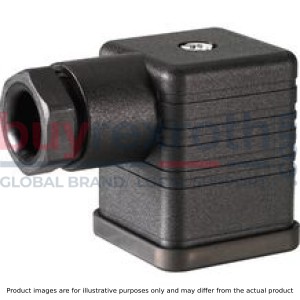

Mating connector without circuitry for valves with “K4” connector, 2-pole + PE. A large cubic connector (design A) with short designation “Z45”’
Quantity in stock: 4,789
| material | R900011039 |
| Shipping height | 34 mm |
| Shipping length | 57 mm |
| Shipping weight estimated | 0.04 kg |
| Shipping width | 28 mm |
| Catalog link | "https://www.boschrexroth.com/various/utilities/mediadirectory/download/index.jsp?object_nr=RE08006" |
| Datasheet name | RE08006 |
| Circuitry | without protective element |
| Connector Style | Connector style A |
| Connector type | Rectangular |
| Contact sex | female |
| Model Code | PLUG-IN CONNECTOR 3P Z45 B GDM201 BG& |
| Number polespotential ground3 | 2 poles + potential ground |
| Rated voltage AC | 250 V |
| Rated voltage DC | 250 V |
| Special Version | - |
| qty | 4789.000 |
For applications outside these parameters, please consult us!
|
Mating connector |
Short designation |
Z45 | |||
|
Design |
A | ||||
|
Ambient temperature |
Standard |
°C |
-30 … +90 | -30 … +125 | |
|
Protection class according to DIN EN 60529 |
IP65 with mating connector mounted and fitted | ||||
|
Number of poles |
2 + PE | ||||
|
Terminal area for lines with external diameter |
mm |
5 … 10 | |||
|
Wire cross-section, max. 1) |
mm² |
1.5 | |||
|
Anschlussart |
Screw connection | ||||
|
Standard |
EN 175301-803 | ||||
|
Certification/conformity |
VDE, SEV, UL, CSA, RoHS | ||||
|
Derating, max. |
16 A |
°C |
40 | ||
|
9,5 A |
°C |
60 | |||
| 1) | 2.5 mm2 with special wire end ferrule clamp (e. g. Knipex 975314 or Weidmüller PZ 6/5) |
Without circuitry, standard
Dimensions in mm
Dimensions in mm
|
1 |
Mounting screw M3, tightening torque MA = 0.5 Nm |
|
2 |
Fitting NPT 1/2″ |
