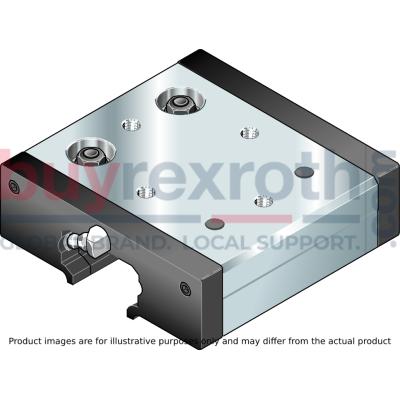

CAM ROLLER RUNNER BLOCK ALUMINUM LWA-052-SNS-FN-E-0

Manufacturer: Bosch Rexroth

Material #: R190215200

Model : C.ROL.R.BLOCK AL LWA-052-SNS-FN-E-0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth C.ROL.R.BLOCK AL LWA-052-SNS-FN-E-0 (R190215200) is a cam roller runner block that offers a combination of high load capacity and precise linear movement, tailored for handling and automation technology applications. This runner block is part of the Rexroth cam roller guides series, which is known for its robust design and reliable performance in various linear motion tasks. The product features an aluminum body with a slimline width, normal length, and standard height, adhering to the SNS format. It falls under the economic accuracy class E and is built to provide a standard load carrying capacity (load class FN) without initial lubrication or preservation. The runner block includes front lube units with low-friction seals on both left and right reference edges for ease of maintenance. Equipped with two-row angular-contact ball bearings that are sealed and lubricated for life, this runner block ensures durability and long-term operation. It has been engineered to handle high loads in all four main directions, including moments about all axes. The guide tracks are made from corrosion-resistant precision steel shafts, enhancing the overall sturdiness of the system. For customization to specific applications, the runner block can be adjusted to zero clearance using eccentric spigots. Additionally, it accommodates lube nipples on both sides and comes with wiper and lubrication units featuring large oil reservoirs. This Bosch Rexroth runner block boasts an impressive dynamic load capacity in both z-direction (Cz) and y-direction (Cy), as well as substantial static load capacities in these directions. It also has significant maximum permissible torsional moments around all axes (Mx max, My max, Mz max), ensuring its capability to withstand various forces during operation. Designed for versatility, this model can operate within a temperature range from -20°C to 80°C while maintaining performance integrity at varying speeds up to its maximum permissible limit (vmax). Its self-aligning feature allows compensation for any misalignments during installation or operation. With a nominal size that fits Size E profiled rail systems perfectly and an optimal weight balance, the Bosch Rexroth C.ROL.R.BLOCK AL LWA-052-SNS-FN-E-0 (R190215200) is an essential component for sophisticated linear motion solutions in modern automated systems.

$376.29 USD

More are expected on February 24, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as February 24, 2025 when ordered in

CAM ROLLER RUNNER BLOCK ALUMINUM LWA-052-SNS-FN-E-0

The cam roller runner block is characterized by the following product features: Format SNS, size 52, aluminum, accuracy economic, load class FN

The cam roller runner block is characterized by the following product features:
Size 52
Format SNS: Width = slimline, length = normal, height = standard
Runner block body made of aluminum
Standard load carrying capacity
Accuracy class E: Economic
Without preservation
Without initial lubrication
Attachment element, left (front reference edge): front lube unit with low-friction seal
Attachment element, right (front reference edge): Front lube unit with low-friction seal
Lube nipple included
Standard version
Overall length of the runner block = 152
Interchangeable element

Unpacked Weight: 1.539 kg

Rexroth cam roller guides were specially developed for handling and automation technology.

Product overview

High load capacity in all four main directions of loading including moments about all axes
Wiper and lubrication units with large oil reservoir on both sides
Lube nipples possible on both sides
The runner block can be simply adjusted to zero clearance by means of eccentric spigots
Two-row angular-contact ball bearing, sealed and lubricated for life
Secured guide tracks made of corrosion-resistant precision steel shafts

Data Sheet	Download Data Sheet
2D CAD	Download 2D CAD
2D CAD	Download 2D CAD
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Footnote for maximum static load due to a resulting force in the y-direction F0y max	Observe the permissible lateral force of the guide rail (see notes for mounting).
Maximum static load due to a resulting force in the y-direction F0y max	2500
Height of runner block	19.4
Size SW2	4
Size E3 (profiled rail systems)	83.3
Dynamic load capacity in z-direction Cz	10050
Maximum operating temperature	+80
Static load capacity in z-direction C0z	4900
Size E2 (profiled rail systems)	70
Maximum dynamic load in y-direction Fy max	2500
Size SW3	6
Dynamic load capacity in y-direction Cy	17150
Max. acceleration amax	50
Minimum operating temperature	-20
Static load capacity in y-direction C0y	10200
Size A (profiled rail systems)	130
Size SW1	16
Self-aligning for compensation of misalignments	Without self-alignment
Maximum permissible linear speed vmax	10
Static torsional moment about the y-axis M0y	147
Lubrication	Without initial lubrication and without preservation
Ball chain	Without roller chain
Operating temperature	-20 °C ... +80 °C
Dynamic torsional moment around the z-axis Mz	515
Static torsional moment about the z-axis M0z	306
Maximum permissible dynamic torsional moment about the x-axis Mx max	32
Maximum permissible static torsional moment about the x-axis M0x max	52
Height of runner block with guide rail	54.3
Dynamic torsional moment around the y-axis My	301
Maximum static load due to a resulting force in the y-direction footnote	Observe the permissible lateral force of the guide rail (see notes for mounting).
Dynamic torsional moment around the x-axis Mx	211
Static torsional moment about the x-axis M0x	103
Maximum dynamic load in y-direction footnote	Observe the permissible lateral force of the guide rail (see notes for mounting).
Maximum dynamic load in z-direction Fz max	1500
Size B2 (profiled rail systems)	16
Size B (profiled rail systems)	136
Note: Maximum permissible speed vmax	For average load.
Preload class	C0 – Without preload (clearance)
Maximum static load due to a resulting force in the z-direction F0z max	2500
Maximum permissible dynamic torsional moment about the z-axis Mz max	75
Maximum permissible static torsional moment about the z-axis M0z max	75
Size B1 (profiled rail systems)	104
Size H (profiled rail system)	54.3
Size H3 (profiled rail systems)	29.2
Productgroup ID	17
Maximum permissible dynamic torsional moment about the y-axis My max	45
Size H2 (profiled rail systems)	29.2
Maximum permissible static torsional moment about the y-axis M0y max	75
Size E4	60
Runner block or guide rail	Runner block
Width of runner block	130
Length of runner block	136
Linear guide type	Cam roller guides
Size E1 (profiled rail systems)	90
Weight	1.539
Nominal size	52
Size H1 (profiled rail systems)	19.4
Note: Maximum dynamic load in y-direction Fy max	Observe the permissible lateral force of the guide rail (see instruction for mounting).

Technical data

Size		20	25	32	52	52-h	52-sh
Fy max 1)	N	700		1000	2500	4500	8000
F0y max 1)	N	700		1000	2500	4500	8000
Fz max	N	400		850	1500	2400	4800
F0z max	N	600	660	1400	2500	4000	7900
Mx max	Nm	3,2	3,8	11	32	50	101
M0x max	Nm	4,8	6	18	52	84	166
My max	Nm	6,8	9	26	45	126	288
M0y max	Nm	10,2	15	42	75	210	474
Mz max	Nm	12	16	30	75	236	480
M0z max	Nm	12	16	30	75	236	480
vmax 2)	m/s	10
amax	m/s²	50
Temperature stability		-20 °C ... +80 °C
Weight	kg	0.2	0.25	0.56	1.5	2.6	3.3

1)	Observe the permissible lateral force of the guide rail (see notes for mounting).
2)	For average load.
	Attention: Not to be used for the life expectancy calculation!
	For service life calculations use the load ratings and moments given in the tables for service life calculations.

Load ratings and moments for calculating the service life

Size		20	25	32	52	52-h	52-sh
Cy	N	2300	2550	7335	17150	27900	31000
C0y	N	1600	1780	4560	10200	15400	18200
Cz	N	1336	1357	4300	10050	16775	18400
C0z	N	783	803	2200	4900	7630	8750
MX	Nm	10,7	13	56	211	352	390
M0x	Nm	6,3	7,6	29	103	160	184
My	Nm	22,7	30,5	129	301	880	1100
M0y	Nm	13,3	18	66	147	400	520
Mz	Nm	39	57	220	515	1465	1860
M0z	Nm	27	40	137	306	808	1100

	Observe maximum permissible loads due to forces and moments as shown in the "Technical data” table!

Legend

Symbol	Description	Unit	Picture
Cy	Dynamic load capacity in y-direction	N
C0y	Static load capacity in y-direction	N
Cz	Dynamic load capacity in z-direction	N
C0z	Static load capacity in z-direction	N
Fy max	Maximum dynamic load in y-direction	N
F0y max	Maximum static load due to a resulting force in the y-direction	N
Fz max	Maximum dynamic load in z-direction	N
F0z max	Maximum static load due to a resulting force in the z-direction	N
Mx max	Maximum permissible dynamic torsional moment about the x-axis	Nm
M0x max	Maximum permissible static torsional moment about the x-axis	Nm
My max	Maximum permissible dynamic torsional moment about the y-axis	Nm
M0y max	Maximum permissible static torsional moment about the y-axis	Nm
Mz max	Maximum permissible dynamic torsional moment about the z-axis	Nm
M0z max	Maximum permissible static torsional moment about the z-axis	Nm
vmax	Maximum permissible speed	m/s
amax	Maximum acceleration travel	m/s2
MX	Dynamic torsional moment about the x-axis	Nm
M0x	Static torsional moment about the x-axis	Nm
My	Dynamic torsional moment about the y-axis	Nm
M0y	Static torsional moment about the y-axis	Nm
Mz	Dynamic torsional moment about the z-axis	Nm
M0z	Static torsional moment about the z-axis	Nm

Rigidity

An increased rigidity can be achieved with higher pre-tensioning force by using eccentric setting.

Acceleration

High accelerations are permitted if slippage is avoided. For this, the pre-tensioning force FV by increasing the eccentric setting; see diagram.

Attention: The maximum permissible load is reduced by the increase of the pre-tensioning force.

1)	Permissible range
2)	a = acceleration
3)	Fv/Cy = standard setting

1)	Eccentric setting
	Lube nipples
	Sizes 20 – 32:
	- Funnel-type lube nipple
	- Form B - thread M3
	Sizes 52 – 52-sh:
	- Hydraulic-type lube nipple
	- BM 6 DIN 71412
	Connection possible on two sides.

Dimensions

Size		20	25	32	52	52-h	52-sh
A	mm	56	65	86	130	145	155
B	mm	79	95	112	136	186	205
B1	mm	59	75	92	104	154	173
B2	mm	7			16
E1	mm	39	50	59	90	105	115
E2	mm	49	60	70		110	140
E3	mm	34	40	54	83.3	90	95
E4	mm	34	45	60		105	120
E5		M5		M8	M10		M12
H	mm	22	25	35.5	54.3	60.4
H1	mm	8.5	9	13	19.4	24
H2	mm	13	14.4	20.5	29.2	35.3
H3	mm	20	22.3	29.5	42.2	51
SW1	mm	7		10	16		18
SW2	mm	2		3	4		6
SW3	mm	2		4	6		8

Service life and load safety factor

Notes for mounting

Lubrication

Centric pins are already tightened when delivery.
