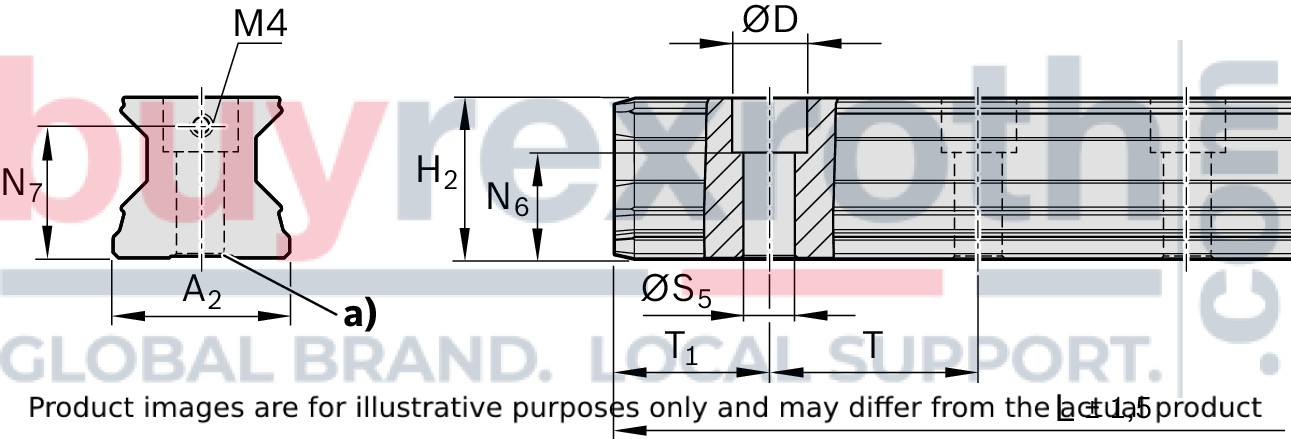

| For mounting from above |
| Hardened raceways smoothened on all sides |
| Maximum rigidity in all load directions |
| Very high torque load capacity |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size T (profiled rail systems) | 30 |
| Material (profiled rail systems) | Carbon steel |
| Size diameter S5 (profiled rail systems) | 7 |
| Size N6 with tolerance (profiled rail systems) | 14,3 mm ±0,5 |
| Number of sections | One-piece |
| Guide rail mounting | For bolting from above |
| Footnote permissible ambient temperature (min ... max) | 100°C admissible for short time. For operation at lower minus temperatures, please consult us. |
| Max. length Lmax | 3986 |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Size N6 tolerance (profiled rail systems) | |
| Format | SNS – Standard guide rail |
| Size A2 (profiled rail systems) | 23 |
| Size D | 11 |
| Guide rail cover | Without cover strip |
| Mass m (kg/m) | 3.1 |
| Size N7 (profiled rail systems) | 15 |
| Size T1 s (profiled rail systems) | 13 |
| Number of holes nB (profiled rail systems) | 133 |
| Pitch T guide rail | 30 |
| Size N6 (profiled rail systems) | 14.3 |
| Footnote of size T1 s (profiled rail systems) | Preferred dimension T1S with tolerances ± 0.75 |
| Size H2 with cover strip (profiled rail systems) | 23.4 |
| Recommended rail length (formula) | L = nB • T ‒ 4 mm |
| Productgroup ID | 17 |
| Accuracy class | H - Highly accurate |
| Permissible ambient temperature (max) | |
| Permissible ambient temperature (min) | |
| Max. length Lmax (4 m guide rails) | 3986 |
| Runner block or guide rail | Guide rail |
| Size T1 min (profiled rail systems) | 13 |
| Linear guide type | Roller rail system |
| Minimum length Lmin | 86 |
| Weight | 0.000 |
| Nominal size | 25 |
