BALL GUIDE RAIL CARBON STEEL KSA-055-SNS-H-MB-00

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

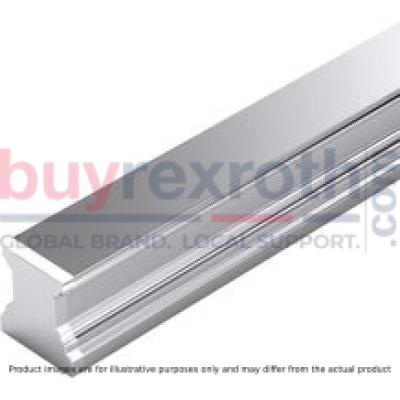

The Bosch Rexroth B.GUIDE RAIL CS (R160750332) is a high-precision ball guide rail designed for robust performance and versatile applications. This guide rail is part of the SNS series, which is recognized for its slimline width, normal length, and standard height, making it a suitable choice for installations where space conservation is crucial. The rail itself is constructed from carbon steel CS, ensuring durability and strength across various uses. With an accuracy class of high, this two-piece rail system provides exceptional precision for demanding linear motion tasks. It is engineered to withstand greater side loads and offers maximum rigidity in all load directions due to its robust design. This attribute also allows it to handle high torque loads effectively. Installation is facilitated by fastener MB, which enables bolting from below without requiring extra space at the ends of the rail. This feature simplifies the mounting process and contributes to a more compact machine design. The lack of a cover strip indicates that this model prioritizes ease of access and maintenance. The B.GUIDE RAIL CS can operate within a wide range of temperatures; however, for negative temperature operations, consultation with Bosch Rexroth is advised to ensure proper functionality. It supports a maximum length (Lmax) that accommodates various application lengths while maintaining its high-performance standards. At 0.97 kg/m, this ball guide rail system balances weight efficiency with structural integrity. It follows the DIN standard for linear guide selection and offers a recommended rail length formula to aid in precise sizing for specific requirements. The absence of a cover strip combined with its T-profiled system makes it an adaptable solution in diverse settings where reliable linear guidance is essential.
