BALL GUIDE RAIL CARBON STEEL KSA-025-SNS-N-MB-00

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

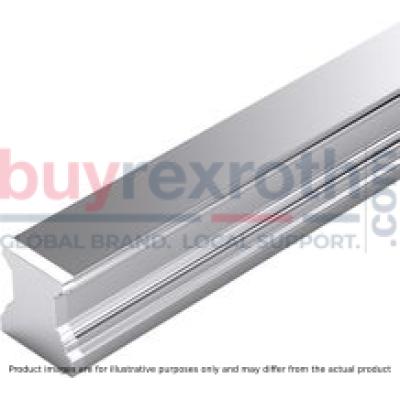

The Bosch Rexroth B.GUIDE RAIL CS (R160720431) is a premium ball guide rail system designed to facilitate smooth and precise linear motion. This guide rail is part of the slimline SNS series, which is known for its narrow width, standard length, and height that provide a compact solution without sacrificing performance. The guide rail is constructed from high-quality carbon steel (CS), ensuring durability and robustness for a wide range of applications. This model features a one-piece design that allows for greater side load capacities and offers maximum rigidity in all load directions. Its high torque load capacity makes it suitable for applications requiring precise control under substantial loads. The fastener MB indicates that this guide rail is designed for bolting from below, making installation straightforward while maintaining a clean surface profile. The Bosch Rexroth B.GUIDE RAIL CS comes without a cover, which simplifies the design while still providing excellent sealing action through its end seals. It adheres to the accuracy class standard (N), ensuring reliable performance in various operational conditions. The product can operate within a permissible ambient temperature range; however, for use at negative temperatures, consultation with the manufacturer is recommended. This model's T-profiled rail systems are made from carbon steel and are capable of handling significant lengths, with the maximum length denoted by Lmax. The weight per meter and pitch of the guide rail are optimized to support efficient motion when paired with an appropriate runner block. In summary, the Bosch Rexroth B.GUIDE RAIL CS (R160720431) offers an optimal combination of slim design, robust construction, and precision engineering to meet the demands of diverse linear motion applications where space constraints are a consideration but performance cannot be compromised.
