BALL GUIDE RAIL CARBON STEEL KSA-025-SNS-H-MB-00

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

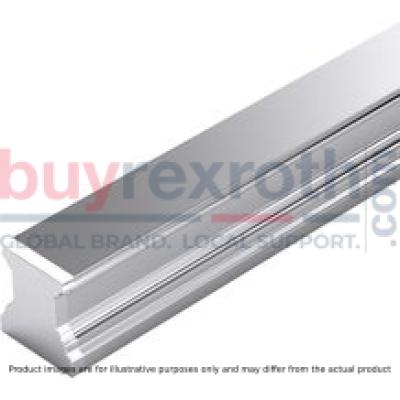

The Bosch Rexroth B.GUIDE RAIL CS (R160720332) is a high-precision ball guide rail system designed for applications requiring maximum rigidity and torque load capacity. This two-piece rail is part of the slimline SNS format, with a standard width, normal length, and standard height, making it suitable for compact installations where space is at a premium. The guide rail itself is constructed from carbon steel CS, ensuring durability and strength. The B.GUIDE RAIL CS is characterized by its high accuracy class, indicating its capability to maintain precision under high loads. It permits greater side loads and offers the best sealing action with end seals designed to protect against contaminants. The fastener type MB allows for secure bolting from below, facilitating an easier installation process in various orientations. This product does not require additional space at the rail ends, which can be especially beneficial in tight spaces or when integrating into existing machinery without the need for significant modifications. The guide rail's design provides maximum rigidity in all load directions and can handle high torque loads efficiently. With a permissible ambient temperature range that supports varying operational environments, this ball guide rail system maintains performance within specified temperature thresholds. For applications that may involve temperatures outside this range or negative temperatures, consultation with Bosch Rexroth is recommended to ensure compatibility. The B.GUIDE RAIL CS (R160720332) has been crafted without a cover strip but maintains its protective qualities through robust design features. Its multipart structure allows for versatility in length, accommodating different requirements while maintaining its structural integrity and performance standards as defined by DIN specifications. This ball guide rail system exemplifies precision engineering for linear motion applications where space constraints and load capacity are critical considerations.
