BALL GUIDE RAIL CARBON STEEL KSA-065-SNS-N-MA-AB

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

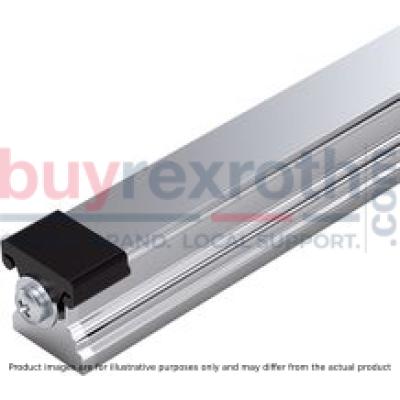

The Bosch Rexroth B.GUIDE RAIL CS (R160566461) is a high-precision ball guide rail designed for various linear motion applications. This product stands out with its slimline width and standard height, tailored specifically to the SNS format, which ensures a compact and efficient design. The guide rail is crafted from durable carbon steel (CS), ensuring longevity and resistance to wear in demanding environments. With an accuracy class of standard, the B.GUIDE RAIL CS provides reliable guidance for moving parts with its one-piece construction. It allows for easy installation due to the fastener MA feature, enabling bolting from above. The inclusion of a cover strip made of corrosion-resistant spring steel, in compliance with DIN EN standards, along with screw-down plastic protective caps for the threaded holes on end faces, offers additional protection against external elements. The design offers maximum rigidity in all load directions and can handle high torque loads effectively. The B.GUIDE RAIL CS is also notable for its adaptability to harsh conditions, boasting a permissible ambient temperature range from -10°C to +100°C. Its maximum length reaches up to 2 meters, accommodating various application needs. With a mass of 2.9 kg/m and a pitch T guide rail size N profiled rail system of 60 mm, this ball guide rail system is optimized for performance and ease of use. The recommended rail length formula provided by Bosch Rexroth ensures precise installation according to specific requirements. Overall, the B.GUIDE RAIL CS offers robust performance characteristics suitable for linear motion systems where precision and durability are paramount. Its thoughtful design features make it an ideal choice for applications requiring a compact yet highly capable guiding solution.
