BALL GUIDE RAIL CARBON STEEL KSA-025-SNS-U-MA-AB

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

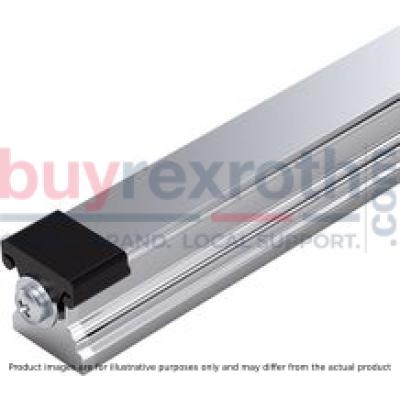

The Bosch Rexroth B.GUIDE RAIL CS (R160526932) is a high-precision ball guide rail designed for use in various applications that require maximum rigidity and torque load capacity. This linear guide, part of the ball rail systems, is constructed from carbon steel CS, ensuring durability and strength. It features an ultra-precision accuracy class, which guarantees highly accurate movement and positioning. The B.GUIDE RAIL CS is a two-piece rail system with a slimline width, standard height, and normal length (format SNS), making it compact yet robust for various uses. The fastener type MA indicates that it can be bolted from above, which simplifies installation in various setups. The inclusion of a cover strip made from corrosion-resistant spring steel adheres to DIN EN standards and provides additional protection against harsh environments. This model is characterized by its ability to withstand high loads in all directions due to its design and material composition. It comes with screw-down plastic protective caps with threaded holes on the end faces for added security and convenience during maintenance or adjustments. With a permissible ambient temperature range from -10°C to 80°C (short-term operation at these temperatures should be consulted with the manufacturer), this guide rail can operate reliably under varying environmental conditions. The recommended length formula provided ensures that users can determine the appropriate rail length for their specific applications based on the number of holes and pitch. The B.GUIDE RAIL CS has a mass of 2.3 kg/m and offers flexibility in terms of size options, accommodating various T-profiled rail systems sizes. Its design allows for straightforward mounting from above using a single cover for all holes, streamlining the installation process. In summary, the Bosch Rexroth B.GUIDE RAIL CS is an ultra-precise linear guide suitable for applications demanding high precision and rigidity while being capable of operating effectively in challenging environments.
