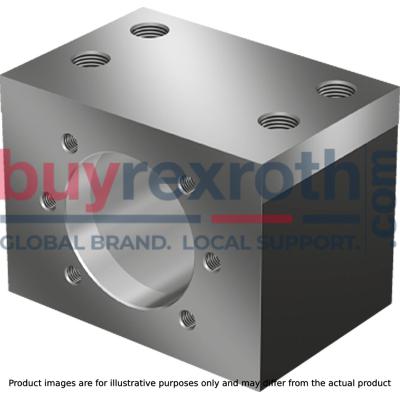

HOUSING MGD
Manufacturer: Bosch Rexroth
Material #: R150600050
Model : HOUSING MGD 16X5/10/16
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth HOUSING (R150600050) is a precision-engineered steel nut housing designed to be compatible with a range of Rexroth ball screw assemblies, specifically for the FEMEB, FDMEB, SEMEC, and FEDEB nuts. This product falls under the product group ID Size E and comes with a defined hole pattern BB Size L for ease of installation and integration into various mechanical systems.
The HOUSING MGD model is crafted to ensure high durability and strength, providing reliable support to the corresponding nut sizes. The accessory is vital for maintaining the alignment and performance of ball screw assemblies in various applications. Its robust construction is tailored to withstand the demands of dynamic motion and load-bearing tasks.
With its specific design tailored for Nut housing Weight and Nominal size x, this Bosch Rexroth nut housing ensures that users can achieve precise motion control in their equipment. It exemplifies Bosch Rexroth's commitment to producing high-quality components that enhance the efficiency and reliability of complex mechanical systems. Whether utilized in automation, manufacturing, or other precision-driven applications, this nut housing is built to deliver consistent performance and extend the service life of ball screw assemblies it accompanies.
$98.49 USD
Availability: Backordered
Ships from US
Qty:
Delivered as early as August 18, 2026
Source From Bosch Rexroth
Unavailable
Technical data and dimensions
|
Size |
Mass |
Hole pattern |
Hex socket cap screw |
A |
B |
D1 |
D6 |
E1 |
E2 |
H |
H1 |
H2 |
N |
S |
S1 |
T1 |
S2 |
T2 |
Clamping length |
|
d0 x P x Dw |
ISO 4762 |
H7 |
L |
||||||||||||||||
|
kg |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|||||||||
|
16 x 5R/L x 3 16 x 10R x 3 16 x 16R x 3 |
0.91 | BB2 | M8 | 50 | 35 mm ±0.01 | 28 | 38 | 50 mm ±0.1 | 20 mm ±0.1 | 24 mm ±0.01 | 48 | 10 | 20 | 8.4 | M10 | 15 | M5 | 10 | 37 |
|
20 x 5R/L x 3 20 x 10R x 3 20 x 20R x 3,5 |
1.18 | 55 | 37.5 mm ±0.01 | 36 | 47 | 55 mm ±0.1 | 23 mm ±0.1 | 28 mm ±0.01 | 56 | 22 | M6 | 11 | 45 | ||||||
|
25 x 5R/L x 3 25 x 10R x 3 25 x 25R x 3,5 |
1.33 | 40 mm ±0.01 | 40 | 51 | 60 mm ±0.1 | 30 mm ±0.01 | 60 | 49 | |||||||||||
|
32 x 5R/L x 3,5 32 x 10R x 3,969 32 x 20R x 3,969 32 x 32R x 3,969 |
2.27 | M12 | 70 | 50 mm ±0.01 | 50 | 65 | 75 mm ±0.1 | 30 mm ±0.1 | 35 mm ±0.01 | 70 | 27 | 13 | M16 | 20 | M8 | 14 | 52 | ||
|
40 x 5R/L x 3,5 40 x 10R/L x 6 40 x 12R x 6 40 x 16R x 6 40 x 20R x 6 40 x 25R x 6 40 x 30R x 6 40 x 40R x 6 |
3.61 | BB1 | M14 | 80 | 60 mm ±0.01 | 63 | 78 | 90 mm ±0.1 | 35 mm ±0.1 | 42 mm ±0.01 | 84 | 12 | 31 | 15 | M18 | 25 | 17 | 65.5 | |
|
50 x 5R x 3,5 50 x 10R x 6 50 x 12R x 6 50 x 16R x 6 50 x 20R x 6,5 50 x 25R x 6,5 50 x 30R x 6,5 50 x 40R x 6,5 |
5.63 | M16 | 95 | 70 mm ±0.01 | 75 | 93 | 110 mm ±0.15 | 45 mm ±0.15 | 48 mm ±0.01 | 96 | 34 | 17 | M20 | 30 | M10 | 75 | |||
| 63 x 10R x 6 | 6.72 | 100 | 75 mm ±0.01 | 90 | 108 | 120 mm ±0.2 | 46 mm ±0.15 | 55 mm ±0.01 | 110 | 15 | 37 | 20 | 89 | ||||||
|
63 x 20R x 6,5 63 x 40R x 6,5 |
7.67 | 80 mm ±0.01 | 95 | 115 | 130 mm ±0.2 | 58 mm ±0.01 | 116 | M12 | 95 | ||||||||||
| 80 x 10R x 6,5 | 8.6 | 85 mm ±0.01 | 105 | 125 | 140 mm ±0.2 | 63 mm ±0.01 | 126 | 105 | |||||||||||
| 80 x 20R x 12,7 | 10.53 | 95 mm ±0.01 | 125 | 145 | 160 mm ±0.2 | 73 mm ±0.01 | 146 | 22 | 125 |
Legend
|
Symbol |
Description |
|
d0 |
Nominal diameter |
|
P |
Lead |
|
DW |
Ball diameter |
