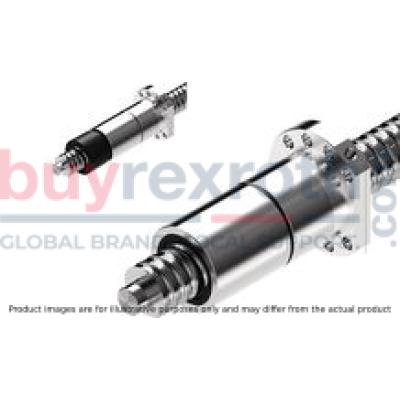

BALL NUT

Manufacturer: Bosch Rexroth

Material #: R150254076

Model : FDM-E-C 50X10RX6-6

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth FDM-E-C 50X10RX6-6 (R150254076) is a high-precision ball screw assembly designed for linear motion applications requiring efficiency and accuracy. This double nut with a flange is part of the standard series, ensuring compatibility with a wide range of equipment. The product features a nominal diameter (d) and lead (P) with a right-hand thread direction, making it suitable for various industrial applications. Constructed to provide reliable performance, the FDM-E-C 50X10RX6-6 boasts mounting dimensions that are similar to DIN standards, specifically with a flange type C. It comes equipped with seals and is preloaded in class C, ensuring minimal axial play and consistent rigidity under load. The tolerance grade is T, which aligns with the general technical specifications outlined for screws in the product overview. The ball screw assembly has an impressive dynamic load capacity and static load rating, both validated for tolerance grades T3 and T5. Users should refer to correction factors if operating outside these tolerance grades. Its maximum permissible linear speed (vmax) indicates its capability to handle high-speed applications without compromising on performance. Bosch Rexroth has engineered this component to operate within a temperature range of -10°C to +100°C, accommodating varying environmental conditions while maintaining its integrity. The product can endure continuous operation at temperatures up to 80°C and withstand temporary peaks up to 100°C. The FDM-E-C 50X10RX6-6's design also includes critical speed considerations and characteristic speeds detailed in the technical notes provided by Bosch Rexroth. With a weight of approximately 4.2 kilograms, this ball screw assembly combines robust construction with precision engineering, making it an essential component for demanding linear motion systems.

This product is not available. CLICK HERE to create a support ticket for us to locate your part or a suitable replacement

BALL NUT

Double nut with flange FDM-E-C, size 50 x 10R x 6 - 6

Double nut with flange FDM-E-C with standard seal and standard axial clearance Nominal diameter d0 = 50 Lead P = 10 (right) Ball diameter Dw = 6 Number of ball track turns i = 6

Unpacked Weight: 4.500 kg

Product overview

Mounting dimensions similar to DIN 69051, Part 5 flange type C
With seals
Preload class: C4, C5
Tolerance grade: T3 (for sizes as per the product overview for screws, see General Technical Notes and Information "Product description"), T5, T7

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual

Bearing temperature max	+80
Nut type	FDM-E-C double nut with flange
Series	Standard series
Bearing temperature min	-15
Productgroup ID	17
Nut or screw	Screw drive nut
Screw drive version (drive type)	Ball screw assembly
Maximum operating temperature	+80
Footnote dynamic load capacity C	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f_ac (see General Technical Notes and Information "Technical Data", Technical Notes).
Bearing temperature	-15 °C ... +80 °C
Category	C
Minimum operating temperature	-10
Maximum permissible linear speed vmax	30
Operating temperature	-10 °C ... +80 °C
Direction of lead	Right
Lead	10
Footnote static load capacity C0	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f_ac (see General Technical Notes and Information "Technical Data", Technical Notes).
Hole pattern	BB1
Static load rating C0	166500
Footnote permissible operating temperature (min...max)	Ball screw assemblies permit operation at continuous temperatures of up to 80°C with temporary peaks of 100°C, measurements taken on the outer shell of the nut in each case.
Dynamic load capacity C	95600
Size L	180
Footnote operating temperature max.	Ball screw assemblies permit operation at continuous temperatures of up to 80°C with temporary peaks of 100°C, measurements taken on the outer shell of the nut in each case.
Footnote maximum permissible speed vmax	See “Characteristic speed d₀• n“ (see General Technical Notes and Information, “Technical Data” (Technical Notes), and “Critical speed n_cr” (see General Technical Notes and Information, “Project planning notes”)
Nominal size	50 x 10R x 6 - 6
Weight	4.500

Technical data for nuts

Size	C	C0	vmax	Mass
d0 x P x Dw - i	N	N	m/min	kg
16 x 5R x 3 - 4	14800 1)	16100 1)	30 2)	0.29
20 x 5R x 3 - 4	17200 1)	21500 1)		0.53
25 x 5R x 3 - 4	19100 1)	27200 1)		0.57
25 x 10R x 3 - 4	18800 1)	27000 1)	60 2)	0.77
32 x 5R x 3,5 - 4	25900 1)	40000 1)	23 2)	0.96
32 x 10R x 3,969 - 5	38000 1)	58300 1)	47 2)	1.34
40 x 5R x 3,5 - 5	34900 1)	64100 1)	19 2)	1.68
40 x 10R x 6 - 4	60000 1)	86400 1)	38 2)	2.15
40 x 10R x 6 - 6	86500 1)	132200 1)	38 2)	2.73
40 x 20R x 6 - 3	45500 1)	62800 1)	75 2)	2.56
50 x 5R x 3,5 - 5	38400 1)	81300 1)	15 2)	2.25
50 x 10R x 6 - 4	66500 1)	109000 1)	30 2)	2.97
50 x 10R x 6 - 6	95600 1)	166500 1)	30 2)	3.73
50 x 20R x 6,5 - 5	90800 1)	149700 1)	60 2)	4.93
63 x 10R x 6 - 4	74200 1)	140500 1)	24 2)	4
63 x 10R x 6 - 6	106600 1)	214300 1)	24 2)	4.45
63 x 20R x 6,5 - 5	100700 1)	190300 1)	48 2)	8.21
80 x 10R x 6,5 - 6	130100 1)	291700 1)	19 2)	5.93
80 x 20R x 12,7 - 6	315200 1)	534200 1)	30 2)	19.4

1)	The load ratings are valid for tolerance grades T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
2)	See "characteristic speed d0 • n" (see General Technical Notes and Information "Technical Data" (Technical Notes), and "Critical Speed ncr" (see General Technical Notes and Information, "Project planning notes")

Operating conditions

Size	Admissible operating temperature (min ... max) 1)	Admissible storage temperature (min ... max)
d0 x P x Dw - i	Admissible operating temperature (min ... max) 1)	Admissible storage temperature (min ... max)
16 x 5R x 3 - 4	-10 °C ... +80 °C	-15 °C ... +80 °C
20 x 5R x 3 - 4
25 x 5R x 3 - 4
25 x 10R x 3 - 4
32 x 5R x 3,5 - 4
32 x 10R x 3,969 - 5
40 x 5R x 3,5 - 5
40 x 10R x 6 - 4
40 x 10R x 6 - 6
40 x 20R x 6 - 3
50 x 5R x 3,5 - 5
50 x 10R x 6 - 4
50 x 10R x 6 - 6
50 x 20R x 6,5 - 5
63 x 10R x 6 - 4
63 x 10R x 6 - 6
63 x 20R x 6,5 - 5
80 x 10R x 6,5 - 6
80 x 20R x 12,7 - 6

1)	Ball screw assemblies are suitable for continuous operation at temperatures up to 80 °C with temporary peaks of 100 °C (measurements taken on the outer shell of the nut).

Legend

Symbol	Description	Unit
d0	Nominal diameter	mm
P	Lead (R = right-hand)
Dw	Ball diameter	mm
i	Number of ball track turns
C	Dynamic load capacity	N
C0	Static load capacity	N
vmax	Maximum permissible speed	m/min

Technical notes

1)	Lube port at flange center (lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm)
2)	Nut rework: Axial lube port

Dimensions

Size	d1	d2	D1	D5	Hole pattern	D6	D7	L	L3	L4	L9 1)	L10	S 2)	Sx
d0 x P x Dw - i	d1	d2	g6	D5	Hole pattern	D6	D7	L	L3	L4	L9 1)	L10	S 2)	Sx
d0 x P x Dw - i	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
16 x 5R x 3 - 4	15	12.9	28	48	BB2	38	5.5	72	12	10	44	60	M6	4
20 x 5R x 3 - 4	19	16.9	36	58		47	6.6	82			51	70
25 x 5R x 3 - 4	24	21.9	40	62		51		82			55	70
25 x 10R x 3 - 4	24	21.9	40	62		51		120		16	55	108
32 x 5R x 3,5 - 4	31	28.4	50	80		65	9	88	13	10	71	75
32 x 10R x 3,969 - 5	31	27.9	50	80		65		146	13	16	71	133
40 x 5R x 3,5 - 5	39	36.4	63	93	BB1	78		100	15	10	81.5	85	M8x1	5
40 x 10R x 6 - 4	38	33.8						140		16		125
40 x 10R x 6 - 6								180		16		165
40 x 20R x 6 - 3								175		25		160
50 x 5R x 3,5 - 5	49	46.4	75	110		93	11	100		10	97.5	85
50 x 10R x 6 - 4	48	43.8						140	18	16		122
50 x 10R x 6 - 6		43.8						180		16		162
50 x 20R x 6,5 - 5		43.3						255		25		237
63 x 10R x 6 - 4	61	56.8	90	125		108		140	22	16	110	118
63 x 10R x 6 - 6		56.8	90	125		108		180		16	110	158
63 x 20R x 6,5 - 5		56.3	95	135		115	13.5	255		25	117.5	233
80 x 10R x 6,5 - 6	78	73.3	105	145		125		190		16	127.5	168
80 x 20R x 12,7 - 6	76	67	125	165		145		340	25	25	147.5	315

1)	Flange type B (two flat surfaces) option available!
2)	Lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm

Legend

Symbol	Description	Unit
d0	Nominal diameter	mm
P	Lead (R = right-hand)
Dw	Ball diameter	mm
i	Number of ball track turns

Calculation

Installation

Attention: When setting up applications, do not allow components to collide with the front lube unit.

Lubrication

Nut housing MGD

Steel nut housings MGD are designed for FEM-E-C, FDM-E-C, SEM-E-C and FED-E-B nuts

Catalog

Service

CAD data

Directives and standards

Flange type B available. See general technical notes and information, “Codes”

Supplied only as complete ball screw assembly.

Required and supplementary documentation

For further instructions and information, please refer to the documentation for this product.

You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.

If you are unsure about using this product, please contact Bosch Rexroth.
