ROTARY LINEAR BUSHING KBRORD-5-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

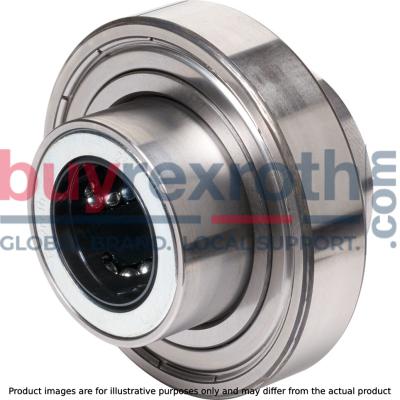

The Bosch Rexroth ROTARY LINEAR BUSH KBRORD-5-DD (R066420500) is designed to facilitate precise guiding under high load ratings, combining both linear and rotary motion capabilities. This innovative component features a deep groove ball bearing with shields, ensuring low friction and suitability for high-speed applications. It is ideal for linear systems that require additional rotary motion, such as grip and swivel functions or winding applications. With a dynamic load capacity C and a static load rating C0, the ROTARY LINEAR BUSH KBRORD-5-DD ensures minimal values are maintained even when the orientation and direction of loading are not clearly defined. The product can operate within an ambient temperature range of -30°C to +80°C, accommodating various working environments. The bushing comes prelubricated and maintenance-free due to its sealed shields, enhancing its longevity and performance reliability. It is constructed with a steel sleeve for shaft diameters ranging from 3 to 50 mm, while external seals are standard for shaft diameters from 12 to 50 mm. The segmental linear bushings cater to shaft diameters from 3 to 50 mm. This model also includes integrated wiper seals for shafts measuring 12, 16, 20, 25, and 30 mm in diameter. The outer diameter D of the bushing allows it to fit seamlessly into various assemblies. Weighing in at just 0.1 kg, the ROTARY LINEAR BUSH KBRORD-5-DD provides a compact yet robust solution for complex linear motion tasks that also demand rotational movement.
