COMPACT LINEAR BUSHING KBC-8-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

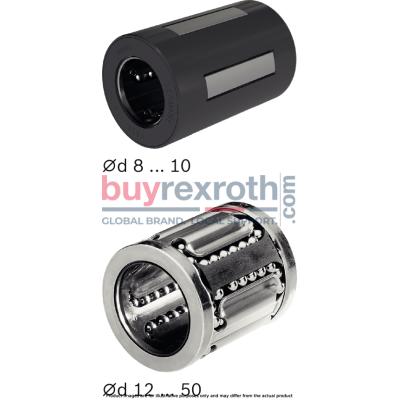

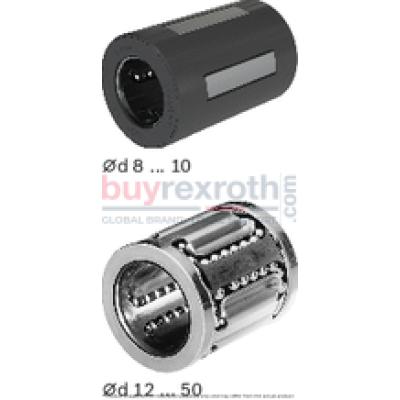

The Bosch Rexroth COMPACT LIN. BUSH. KBC-8-DD (R065820840) is a state-of-the-art compact linear bushing designed for general requirements in linear motion applications. This product features a shaft diameter of 8 mm and is characterized by small outer dimensions and a highly compact construction, which allows for efficient use of space within machinery. It is equipped with two seals that enhance its durability and performance by preventing the ingress of contaminants. The KBC-8-DD boasts a high dynamic load rating and an extended service life due to its hardened segmental load-bearing plates, which ensure ball conformity in the running track, allowing for high travel speeds. The bushing's design includes integrated wiper seals that contribute to its maintenance-free operation, as they serve as lubricant reservoirs for extended intervals or even lifetime lubrication. Additionally, these pockets collect dirt to prevent jamming, ensuring smooth operation. This linear bushing comes with standard radial clearance and is not pre-lubricated, giving users the flexibility to apply their preferred lubrication based on specific application requirements. Its installation is straightforward—simply pressed into place without the need for additional retention mechanisms. The product has an outer diameter of 15 mm and can withstand a maximum dynamic load capacity (Cmax) while maintaining optimal performance within a permissible ambient temperature range of -10°C to +100°C. The KBC-8-DD's design includes an integrated metal retainer that is approximately 0.1 mm larger than the outer diameter shaft diameters ranging from 3 to 40 mm, ensuring a secure fit in the housing bore. With its robust construction and thoughtful design features aimed at enhancing reliability and ease of use, the Bosch Rexroth COMPACT LIN. BUSH. KBC-8-DD (R065820840) represents an effective solution for various linear motion applications requiring compactness and efficiency.
