LIFT MODULE F1600-LIFT440MM

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

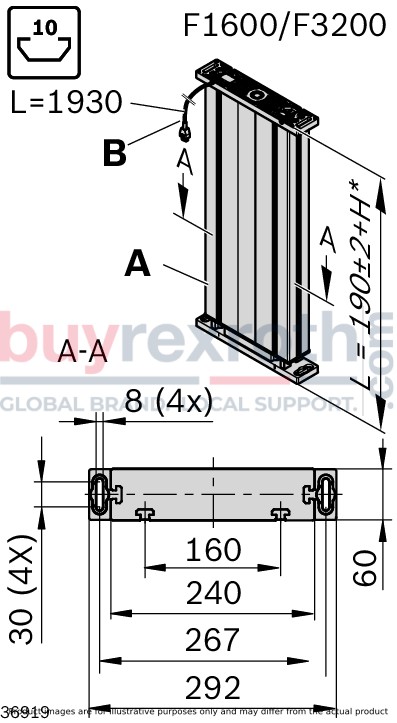

The Bosch Rexroth LIFT MODULE (3842558627) is an advanced lifting column designed for the continuous height adjustment of workplaces, even under significant loads. This model, F1600-LIFT440MM, is part of a series that includes three lifting modules, each with varying maximum lifting and pressure forces as well as different lifting velocities to accommodate specific application requirements. These modules offer three distinct lifting lengths per variant, ensuring flexibility and adaptability across a range of uses. The LIFT MODULE F1600-LIFT440MM is engineered for easy attachment via mounting plates at the face sides or through the integrated mm slot. It includes a connection cable with a customizable length and allows for cable routing on either the left or right side to suit various installation scenarios. The design incorporates a diagonal cover cap that serves as a safety feature by preventing crushing risks. Moreover, all lifting modules in this series are electrostatic discharge enabled, highlighting their suitability for environments where static build-up could be a concern. The conductive nature of the mounting plates ensures safe and reliable operation. An attachment bracket set is available that is compatible with F, F or F lifting modules for lateral profile attachment with grid dimensions in mm. In terms of compliance and safety standards, this model adheres to IEC and DIN EN regulations regarding socket outlets and residual current protection. Specifically, circuits supplying socket outlets rated not exceeding 16 A must have residual current protection devices (RCDs) with a rated operating current not exceeding 30 mA. The product group ID for this module highlights its specifications: Force F1600; Length L440mm; Compression load Fmax; Tilting torque My; Tensile load Fmax; Tilting torque Mx; Speed; Maximum load version Fmax; Weight. These details are crucial for buyers to understand the module's capabilities and ensure it meets their specific application requirements without compromising on safety or functionality.
