BASE UNIT 120+ CENTER

Manufacturer: Bosch Rexroth

Material #: 3842552942

Model : BASE UNIT 120+ CENTER

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth BASE UNIT 120+ CENTER (3842552942) is a versatile and robust center drive basic unit designed for conveyor systems where space is at a premium at the ends of the sections. This product can be easily converted into a fully functional center drive by adding the provided drive kit, allowing for variable motor mounting positions to suit different installation requirements. The unit boasts reduced noise emission due to slide rails guided in the head drive, and it facilitates the installation of the drive kit on either the right or left side, including motor, coupling, and flange components. The BASE UNIT 120+ CENTER is equipped with a hexagonal hollow shaft as standard for driving parallel conveyor sections or bridges. It features ball bearings made of non-rusting steel with seals on both sides and FDA-compliant grease filling, ensuring durability and compliance with food safety regulations. The side elements come with slots for attaching holders for lateral guides or similar accessories. With chain return on the underside of the profile, this basic unit supports conveying speeds up to a certain number of meters per minute (m/min), with other speeds available upon request. It can handle a maximum permissible chain tensile force (Fmax) and is capable of conveying lengths up to a specified maximum without requiring length compensation due to no chain bag being present; however, regular checks and adjustments to the chain length are necessary. This product comes fully assembled with fastening material included, and profile connectors are enclosed in the package. The housing is made from non-rusting steel, while other components such as the chain wheel, chain guide, connector, hexagonal shaft, and ball bearing also feature non-rusting steel construction along with PA (Polyamide) material for certain parts—all designed to offer reliability and ease of maintenance in various conveyor applications.

$2,064.62 USD

More are expected on January 13, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as January 13, 2025 when ordered in

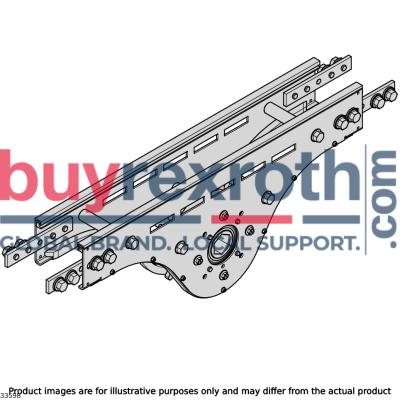

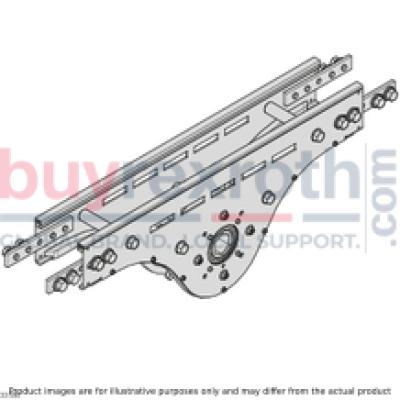

BASE UNIT 120+ CENTER

Basic unit center drive VFplus 120

Unpacked Weight: 4.5 kg

Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Side elements with slot to attach holders for lateral guides, or similar

The center drive basic unit is used if the available space is limited at the ends of the sections. It is quickly turned into a center drive with variable motor mounting position by adding the drive kit

Size: 65-120 Chain return on the underside of the profile Conveying speed: vN = 2 ... 60 m/min, other speeds available on request Permissible chain tensile force: Fmax = 600 N Max. conveying length: 7 m Because no length compensation (chain bag) is present, the chain length must be checked regularly and shortened if necessary Recommendation: No accumulation up to 1000 mm after the return unit An assembly module is required for assembling the chain

Drive kit VFplus

Base unit center drive + drive kit = a complete center drive
Reduced noise emission due to slide rails guided in the head drive
Installation of the drive kit possible on the right/left (motor, coupling, flange)
Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Side elements with slot to attach holders for lateral guides, or similar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Weight	4.5
Scope of delivery	Incl. fastening material
Delivery information	Assembled, profile connector enclosed
Size [b]	120
Material information	Housing: Non-rusting steel 1.4301,Chain wheel: PA,Chain guide: PA,Connector: Non-rusting steel 1.4301,Hexagonal shaft: PA,Ball bearing: Non-rusting steel 1.4301/FDA

	Material
Basic unit center drive VFplus 65	Housing: stainless steel Chain wheel: PA Chain guide: PA Connector: stainless steel Hexagonal shaft: PA Ball bearings: stainless steel/FDA
Basic unit center drive VFplus 90
Basic unit center drive VFplus 120

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter
