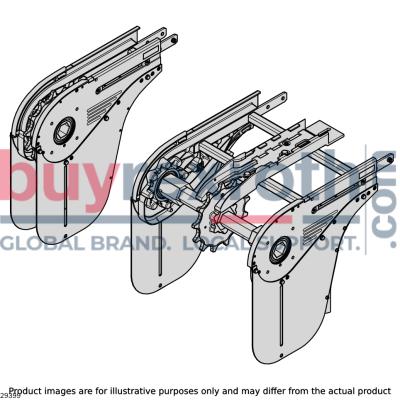

BASE UNIT 65+ AL DIRECT

Manufacturer: Bosch Rexroth

Material #: 3842546120

Model : BASE UNIT 65+ AL DIRECT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth BASE UNIT 65+ AL DIRECT (3842546120) is a versatile and efficient conveyor system component designed for a wide range of applications. This base unit is engineered to be transformed into a head drive with variable mounting positions by adding a drive kit. It features reduced noise emission due to its slide rails being guided in the head drive, making it suitable for environments where minimal operational sound is essential. The unit boasts an innovative drive concept with a double-sided hexagonal hollow shaft, allowing for the easy driving of other components such as a transmission active bridge. It is compatible with all track widths and chain types, ensuring flexibility in system design. The permissible chain tensile force reaches up to Fmax N, while the section length can extend to L m, catering to various conveyor sizes. With a conveying speed of vN m/min and options for other speeds available upon request, this base unit meets diverse operational requirements. It includes a chain bag designed to compensate for chain elongation during its service life, although it is not suitable for reversible operations. The 3842546120 model features stainless steel ball bearings with seals on both sides and FDA-compliant grease filling, enhancing its durability and suitability for use in industries where hygiene standards are paramount. The ability to implement parallel sections with zero gap dimension and side elements with slots for attaching holders for lateral guides or similar accessories adds to its adaptability. Additionally, the use of a chain sprocket is necessary to prevent the chain from slipping back on inclined sections. The housing of this base unit is made from die-cast aluminum that's powder-coated in silver, ensuring robustness and longevity. The scope of delivery includes fastening material and assembled chain guards, making installation straightforward and efficient.

$591.87 USD

More are expected on January 3, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as January 3, 2025 when ordered in

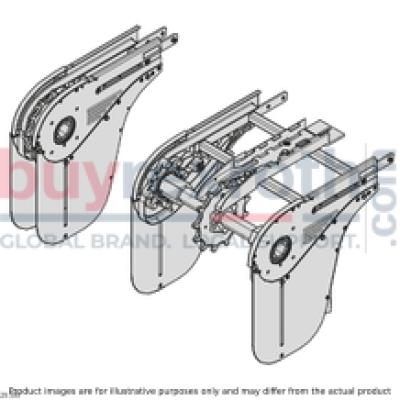

BASE UNIT 65+ AL DIRECT

Base unit AL, VFplus 65 dir.

Unpacked Weight: 3.96 kg

Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard Stainless steel ball bearings, with sealing on both sides and FDA-compliant grease filling Implementation of parallel sections with gap dimension down to zero Side elements with slot to attach holders for lateral guides, or similar A chain sprocket must be used to limit the chain slipping back on inclined sections.

The base unit is quickly turned into a head drive with variable mounting position by adding a drive kit.

With the double-sided hexagonal hollow shaft, other components can be easily driven using a transmission (active bridge).

Size: all track widths Suitable chain types: all Permissible chain tensile force: Fmax = 1250 N Section length: L ≤ 30 m Conveying speed: vN 4-27 m/min, other speeds available on request Chain bag to compensate for chain elongation during service life Not suitable for reversible operation

Chain sprocket

Innovative drive concept

Conveyor noise level

Base unit AL direct + drive kit = a complete head drive
Reduced noise emission due to slide rails guided in the head drive
Installation of the drive kit possible on the right/left (motor, coupling, flange)
Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard
Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling
Implementation of parallel sections with gap dimension down to zero
Side elements with slot to attach holders for lateral guides, or similar
A chain sprocket must be used to limit the chain slipping back on inclined sections.

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Productgroup ID	2
Effective sliding rail length	0,881
Actual chain length	2x 0,2
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Weight	3.96
Scope of delivery	Incl. fastening material
Delivery information	Assembled: chain guards enclosed
Recommended accessories	Active or passive bridge connection kits,Synchronous drive connection kit
Required accessories	Drive kit,Slide rail: Length calculation,Motor support
Size [b]	65
Material information	Housing: Diecast aluminum, powder-coated, silver,Chain wheel: PA,Chain guide: PA,Ball bearing: Non-rusting steel 1.4301/FDA,Connector: Steel, galvanized,Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA

Combination matrix

		Straight			Curves				Drives				Return Unit
		Section profile AL open	Section profile AL closed	Assembly module	Curve wheel	Roller curve*	Horizontal sliding curve	Vertical curve	Head drive	Curve wheel drive	Connection drive	Center drive (STS)**	Basic unit	90° (STS)**	Transmission kit
Straight	Section profile AL open	J
	Section profile AL closed	J	J
	Assembly module	J	J	N
Curves	Curve wheel	J	J	L2)	L2)
	Roller curve*	J	N	J	N	L1)
	Horizontal sliding curve	J	J	J	J	N	L1)
	Vertical curve	J	J	J	J	L1)	L1)	L1)
Drives	Head drive	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	N
	Curve wheel drive	J	J	L2)	L2)	N	L1)	L1)	N	N
	Connection drive	J	J	L2)	L2)	N	L1)	L1)	N	N	N
	Center drive (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	N	N
Return Unit	Basic unit	J	J	L2)	L2)	L1, 4)	L1)	L1, 4)	L2)	N	N	L2, 3)	L2, 3)
	90° (STS)**	L5)	L5)	L2, 5)	L2, 5)	N	L1, 5)	L1, 5)	N	N	L2, 5)	N	N	L2)
	Transmission kit	N	N	N	N	N	N	N	J	N	J	N	J	N	N
J	possible without restrictions		* Support profile must project 76+2 mm into the roller curve.
L	possible with restrictions		** AL-STS adapter included in the scope of delivery.
N	not possible

1)	Profile connector not required
2)	Use of a profile piece (Lmin = 120 mm)
3)	Assembly module required
4)	For sizes 160-320: shorten the support rail on the dotted line
5)	Use of the AL-STS adapter

Head drive AL GM = 0

Head drive AL GM = 2

Base unit AL

Note: High-pressure cleaning of the ball bearings is not permitted.

Note: A chain sprocket must be used to limit the chain slipping back on inclined sections.

Slide rail

Easy assembly - simply clip onto the section profile Secured against axial shifting due to lateral bolting

CAD data

Drive kit

The adjustable ball catch coupling is protected and integrated in the flange to save space

CAD data

Connection kit active bridge, connection kit passive bridge

Simple transmission of the drive force using hexagonal hollow shafts integrated into the base unit or return unit as standard Can be retrofitted into a standard configuration at any time Active and passive bridges can be used at section ends for product transfer

CAD data

Connection kit synchronous drive
external motor/internal motor

CAD data

BASE UNIT 65+ AL DIRECT

Manufacturer: Bosch Rexroth

Material #: 3842546120

Model : BASE UNIT 65+ AL DIRECT

More are expected on January 3, 2025

Chain sprocket

Combination matrix

Head drive AL GM = 0

Head drive AL GM = 2

Base unit AL

Slide rail

Slide rail

Drive kit

Drive kit

Connection kit active bridge, connection kit passive bridge

Connection kit active bridge, connection kit passive bridge

Connection kit synchronous drive
external motor/internal motor

Connection kit synchronous drive
external motor/internal motor
