ASSEMBLY KIT SH/OC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

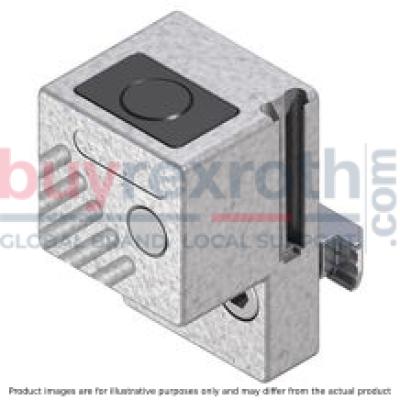

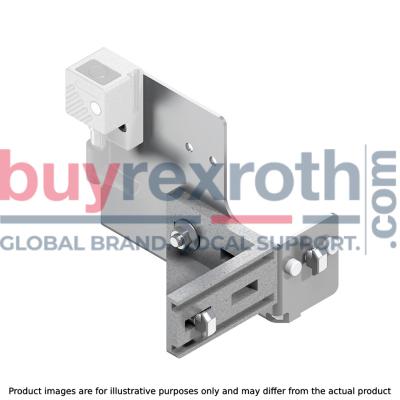

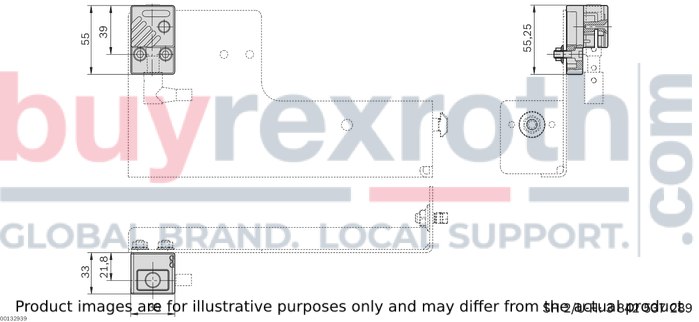

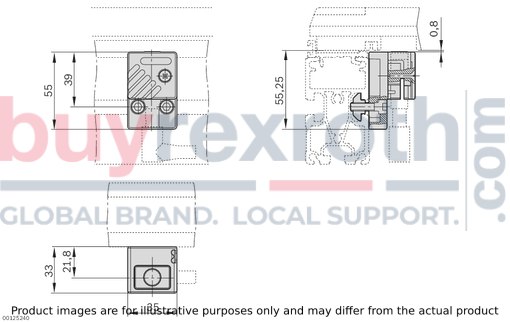

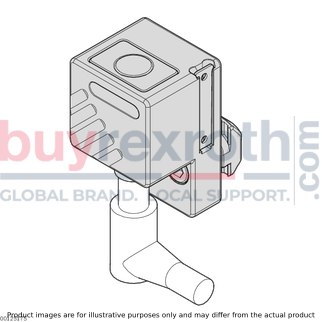

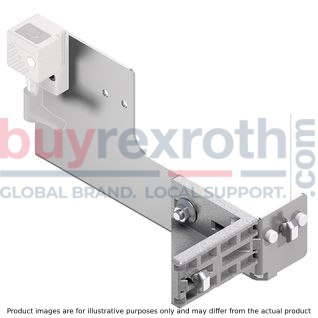

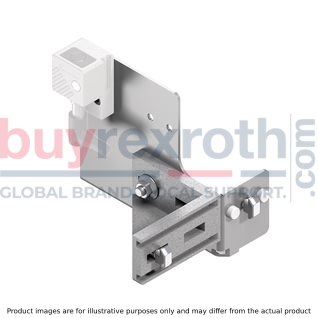

The Bosch Rexroth ASSEMBLY KIT SH/OC (3842545533) is a comprehensive solution designed for precise detection and positioning in conveyor systems. This assembly kit is tailored to support the SH UH switch bracket, ensuring reliable position inquiry for workpiece pallets, lift transverse units, and positioning units. The kit includes a robust metal design that offers durability and stability, particularly in industrial environments where sturdy construction is paramount. With an integrated stop designed to accommodate a sensor with a rated sensing range of up to 8 mm, this assembly kit facilitates accurate workpiece pallet position sensing from below the conveyor. It comes equipped with a holding plate that precisely aligns the switch bracket for correct position inquiries. Moreover, centering lugs are provided for quick prepositioning and fast assembly, streamlining the installation process. The kit's versatility allows it to be mounted on various components of conveyor units such as ST H and ST XH or used with PE positioning units or HQ lift transverse units. It has been engineered for easy installation on the section profile of these systems. The product group ID indicates its classification within Bosch Rexroth's extensive catalog of parts designed for transportation control in automated settings. Included in the scope of delivery are all necessary fastening materials required for assembly. However, it should be noted that the assembly kit is delivered not assembled, allowing for customization based on specific application needs. Additionally, while this kit enhances functionality significantly, it is not mandatory for configurations using a b 40 mm fitted stop gate without an assembly kit. Overall, the Bosch Rexroth ASSEMBLY KIT SH/OC (3842545533) represents an essential component for enhancing precision and reliability in conveyor system applications where sensor integration and workpiece detection are critical operational requirements.
