CARRYING PLATE 480X800X12,7 ALU

Manufacturer: Bosch Rexroth

Material #: 3842524604

Model : CARRYING PLATE 480X800X12,7 ALU

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CARRYING PLATE 480X800X127 ALU (3842524604) is a robust and versatile platform designed for the self-assembly of workpiece pallets, which are essential in various handling and transport applications. This particular carrying plate is crafted from high-quality aluminum, with dimensions of 480mm by 800mm and a thickness of 12.7mm, ensuring a sturdy and reliable base for product support. The plate comes fully drilled, facilitating easy assembly and compatibility with frame modules of WT 2 workpiece pallets. It is one of the 13 standard sizes available in aluminum with this thickness, which speaks to its adaptability to different scale requirements within the WT 2 system. The carrying plate's design allows for seamless integration with identification and data storage systems, as detailed drilling plans can be found in the RFID systems catalog. With its comprehensive pre-drilled layout and compatibility with Bosch's sophisticated RFID systems, this carrying plate is an ideal solution for creating customized workpiece pallets that can be used in automated processes or manual handling setups. Its construction from durable materials ensures longevity and performance in various operational environments. In summary, the Bosch CARRYING PLATE 480X800X127 ALU (3842524604) is designed to meet the demands of modern material handling and automation tasks. Its compatibility with WT 2 frame modules makes it an integral component for those looking to construct or upgrade their workpiece pallet systems with reliable and precision-engineered parts.

$626.35 USD

Availability: 4 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as December 27, 2024 when ordered in

CARRYING PLATE 480X800X12,7 ALU

Carrying plate WT 2, AL 12.7 480/800

Unpacked Weight: 12.9 kg

15 standard sizes in steel, 4.8 mm thick, with KTL (cataphoretic primer) coating 10 standard sizes in aluminum, 8 mm thick 13 standard sizes in aluminum, 12.7 mm thick You will find drilling plans for identification and data storage systems in the RFID systems catalog Can be combined with frame modules of WT 2 workpiece pallets

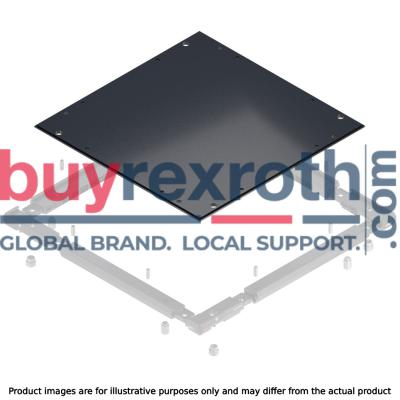

Carrying plates are used for self-assembly of WT 2 workpiece pallets using frame modules and fastening elements.

For self-assembly of workpiece pallets for product support
Completely drilled and ready for assembly
15 standard sizes in steel, 4.8 mm thick, with KTL (cataphoretic primer) coating
10 standard sizes in aluminum, 8 mm thick
13 standard sizes in aluminum, 12.7 mm thick
You will find drilling plans for identification and data storage systems in the RFID systems catalog
Can be combined with frame modules of WT 2 workpiece pallets

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Plate thickness [dPL]	12.7
Productgroup ID	2
Dimension [d]	643.5
Workpiece pallet total weight [mG]	100
Dimension [a]	108.5
Dimension [c]	428.5
Flatness	1
Material	Aluminum
Weight	12.9
Notice	with four threaded holes for reinforcing bolts
Workpiece pallet width [bWT]	480
Workpiece pallet length [lWT]	800

Steel carrying plate (4.8 mm)

No production drawing

Aluminum carrying plate (8 mm)

No production drawing

Aluminum carrying plate (12.7 mm)

No production drawing

No.	Width of workpiece pallet	Length of workpiece pallet	Plate thickness	Flatness	Plate mass	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension	Dimension
	bWT	lWT	dPL	▢	mPL	a	aa	b	bb	c	cc	d	f	g	gg	h	hh	i	ii	j	k	kk	m	mm	n	o	oo	p	pp	q	r	rr	s	t	tt	u
	mm	mm	mm	mm	kg	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
3842174311	160	160	4.8	0.3	0.9								124												84.5					45
3842174313	160	240	4.8	0.3	1.4								204												84.5					45
3842174321	240	240	4.8	0.3	2.1								204												164.5					125
3842174315	160	320	4.8	0.3	1.8								284												84.5					45
3842174323	240	320	4.8	0.5	2.8								284												164.5					125
3842174331	320	320	4.8	0.5	4.3								284												244.5					205
3842174325	240	400	4.8	0.5	4.1								364												164.5					125
3842174333	320	400	4.8	0.6	5.3								364												244.5					205
3842174375	400	400	4.8	0.6	6.6						59.5		364						304.5						324.5					285		20			265
3842174334	320	480	4.8	0.6	6.4	108.5		323.5					444	120.5		335.5									244.5					205
3842174376	400	480	4.8	0.6	7	108.5		323.5			59.5		444	120.5		335.5			384.5						324.5					285		20			265
3842174381	480	480	4.8	0.8	9.3	108.5		323.5			59.5		444	120.5		335.5			384.5		81		296		404.5	69		284		365		20			345
3842174378	400	640	4.8	0.8	10.4	108.5		323.5			59.5		604	280.5		495.5			544.5						324.5					285		20			265
3842174383	480	640	4.8	1	12.3	108.5		323.5			59.5		604	280.5		495.5			544.5		81		296		404.5	69		284		365		20			345
3842523381	640	640	4.8	1	16.3	108.5		323.5			95.5		604	280.5		495.5			544.5		241		456		564.5	69		284		365		20			505
3842524595	320	320	8	0.5	2.1								284												244.5					205
3842524594	240	400	8	0.5	2								364												164.5					125
3842524596	320	400	8	0.6	3.7								364												244.5					205
3842524598	400	400	8	0.6	3.4						59.5		364						304.5						324.5					285		20			265
3842524597	320	480	8	0.6	3.7	108.5		323.5			59.5		444	120.5		335.5			384.5						244.5					205
3842524599	400	480	8	0.6	4	108.5		323.5			59.5		444	120.5		335.5			384.5						324.5					285		20			265
3842524602	480	480	8	0.8	4.9	108.5		323.5			59.5		444	120.5		335.5			384.5		81		296		404.5	69		284		365		20			345
3842524600	400	640	8	0.8	5.4	108.5		323.5			59.5		604	280.5		495.5			544.5						324.5					285		20			265
3842524603	480	640	8	1	6.5	108.5		323.5			59.5		604	280.5		495.5			544.5		81		296		404.5	69		284		365		20			345
3842524605	640	640	8	1	8.7	108.5		323.5			59.5		604	280.5		495.5			544.5		241		296		404.5	69		284		525		20			505
3842538307	400	400	12.7	0.6	5.3						59.5		364						304.5						324.5					285		20			265
3842538346	320	480	12.7	0.6	5.1	108.5		323.5			59.5		444	120.5		335.5			384.5						244.5					205
3842538308	400	480	12.7	0.6	6.4	108.5		323.5			59.5		444	120.5		335.5			384.5						324.5					285		20			265
3842538309	480	480	12.7	0.8	7.7	108.5		323.5			59.5		444	120.5		335.5			384.5		81		296		404.5	69		284		365		20			345
3842538310	400	640	12.7	0.8	8.6	108.5		323.5			59.5		604	280.5		495.5			544.5						324.5					285		20			265
3842538311	480	640	12.7	1	10.3	108.5		323.5			59.5		604	280.5		495.5			544.5		81		296		404.5	69		284		365		20			345
3842538312	640	640	12.7	1	13.8	108.5		323.5			59.5		604	280.5		495.5			544.5		241		296		404.5	69		284		525		20			505
3842524601	400	800	12.7	1	10.8	108.5		323.5		428.5	59.5	643.5	764	120.5		335.5		440.5	704.5	655.5					324.5					285		20			265
3842524604	480	800	12.7	1	12.9	108.5		323.5		428.5	59.5	643.5	764	120.5		335.5		440.5	704.5	655.5	81		296		404.5	69		284		365		20			345
3842524606	640	800	12.7	1	17.3	108.5		323.5		428.5	59.5	643.5	764	120.5		335.5		440.5	704.5	655.5	241		456		564.5	69		284		525		20			505
3842524608	800	800	12.7	1	21.7	108.5		323.5		428.5	59.5	643.5	764	120.5		335.5		440.5	704.5	655.5	81		296		724.5	69		284		685	389	20	604	401	665	616
3842524607	640	1040	12.7	1.2	22.5	108.5		323.5		428.5	59.5	643.5	1004	360.5		575.5		680.5	944.5	895.5	241		456		564.5	69		284		525		20			505
3842524609	800	1040	12.7	1.2	28.2	108.5		323.5		428.5	59.5	643.5	1004	360.5		575.5		680.5	944.5	895.5	81		296		724.5	69		284		685	389	20	604	401	665	616
3842548684	800	1200	12.7	1.2	36	108.5	748.5	323.5	963.5	428.5	59.5	643.5	1164	200.5	840.5	415.5	1055.5	520.5	1104.5	735.5	81		296		724.5	69		284		685	389	20	604	401	665	616
3842548685	1040	1040	12.7	1.2	40.6	108.5		323.5		428.5	59.5	643.5	1004	360.5		575.5		680.5	944.5	895.5	321		536		964.5	69		284		925	389	20	604	641	905	856
3842548686	1040	1200	12.7	1.2	46.9	108.5	748.5	323.5	963.5	428.5	59.5	643.5	1164	200.5	840.5	415.5	1055.5	520.5	1104.5	735.5	321		536		964.5	69		284		925	389	20	604	641	905	856
3842548687	1200	1200	12.7	1.2	54.1	108.5	748.5	323.5	963.5	428.5	59.5	643.5	1164	200.5	840.5	415.5	1055.5	520.5	1104.5	735.5	131	801	376	1016	1124.5	69	709	284	924	1085	389	20	604	681	1065	696
