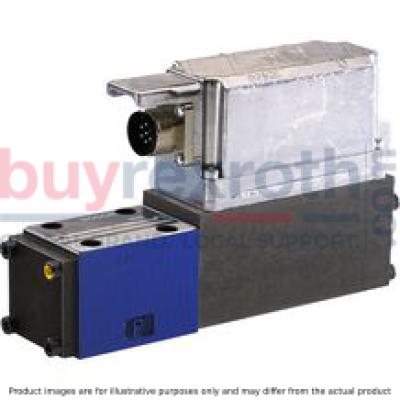

PROPORTIONAL DIRECTIONAL VALVE 4WRPH10C1B100L-2X/G24K0/M-750

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WRPH10C1B100L-2X/G24K0/M ('0811404901') is a direct operated high-response industrial hydraulic valve designed for precise and rapid control of oil flow direction. This size 10 valve features symbol C1, an external amplifier, and operates on a 24 V DC power supply. It is characterized by its linear flow characteristics and high accuracy, which is ensured by an external piston position feedback mechanism. Valves of the 4WRPH-750 series, to which this model belongs, are known for their servo quality performance and robust design that can withstand challenging environmental conditions. The design includes a control spool and sleeve that are actuated on one side, with the capability to revert to a 4/4 fail-safe position when deactivated. This feature makes it particularly suitable for safety-critical applications. The 'Ruggedized' design of this valve indicates that it can endure significant mechanical stress (up to 40 g) and has a central connector for ease of use. Its suitability for the wood industry and other installations facing aggravated environmental conditions demonstrates its reliability in harsh settings. For mounting purposes, the valve follows the porting pattern according to ISO 4401 standards for subplate mounting, ensuring compatibility with various hydraulic systems. The combination of its high-response capabilities and durable construction makes this Bosch hydraulic valve an essential component for sophisticated industrial applications requiring precise fluid control under demanding circumstances.
