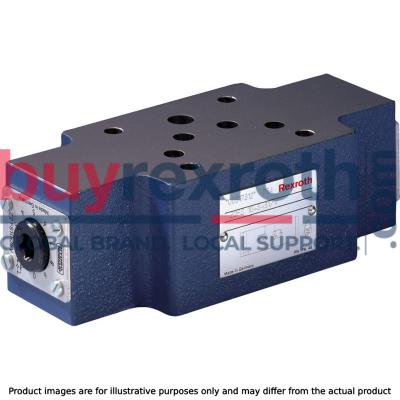

THROTTLE CHECK VALVE Z2FS10A5-3X/S2V

Manufacturer: Bosch Rexroth

Material #: R900523578

Model : Z2FS10A5-3X/S2V

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z2FS10A5-3X/S2V (R900523578) is a high-performance industrial hydraulic valve designed for precise flow regulation within hydraulic systems. This throttle check valve, part of the ZFS series, is intended for sandwich plate installation and serves to limit the main or pilot flow to one or two actuator ports. Its construction allows for reliable throttling to a set value while enabling free return flow in the opposite direction. The Z2FS10A5-3X/S2V features a spindle with an internal hexagon and scale for accurate adjustments, and it operates with mechanical actuation. The spool symbol A A or A A indicates its specific configuration, which contributes to its functionality in various applications. The valve can withstand a maximum operating pressure as indicated by its product group ID and supports a maximum flow rate as specified in its detailed specifications. Equipped with FKM seals, the Z2FS10A5-3X/S2V is compatible with multiple types of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR. It follows the porting pattern according to ISO standards and comes in size CETOP D. Additionally, it offers various adjustment types such as a lockable rotary knob with scale and corrosion-protected design for longevity in harsh environments. This valve is suitable for applications requiring precise actuator velocity adjustment through main flow limitation or switching time adjustment through pilot flow limitation. Whether installed between directional valves and subplates or between pilot control valves and main valves, the Bosch Rexroth Z2FS10A5-3X/S2V ensures efficient operation of hydraulic systems where controlled flow rates are critical.

$504.00 USD

Availability: 1 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as June 4, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

THROTTLE CHECK VALVE Z2FS10A5-3X/S2V

Size 10; A1 → A2 or A2 → A1; mechanically actuated

Industrial hydraulic valve in a high performance range. Reliable throttling of the flow to setting value.

Unpacked Weight: 2.98 kg

Sandwich plate valve Porting pattern according to ISO 4401-05-04-0-05 For the main or pilot flow limitation of 2 actuator ports. 3 adjustment types:• Lockable rotary knob with scale• Spindle with internal hexagon and scale• Rotary knob with scale Meter-in or meter-out throttling Corrosion-protected design

The valve type Z2FS 10 is a throttle check valve in sandwich plate design. It is used for the main or pilot flow limitation of one or two actuator ports.

Two throttle check valves aligned symmetrically to each other limit flows in one direction and allow free return flow in the opposite direction.

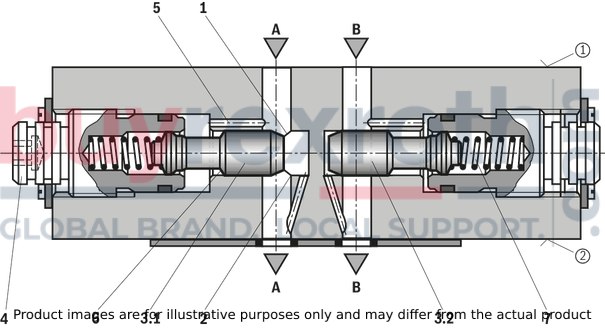

In case of supply throttling, the hydraulic fluid is directed through channel A1 via throttling point (1) formed by the control edge (2) and the throttle spool (3.1) to actuator A2. The throttle spool (3.1) can be axially adjusted via the spindle (4) for adjustment of the throttling point (1).

Simultaneously, the hydraulic fluid in channel A1 is directed via the bore (5) to the piston side (6). The active pressure and the spring force retain the throttle spool (3.1) in throttle position.

The hydraulic fluid return flow from actuator B2 displaces the throttle spool (3.2) against the spring (7) and enables the unobstructed flow as check valve. Depending on the installation position, the throttling effect may occur in supply or discharge.

Main flow limitation

For actuator velocity adjustment (main flow limitation), the throttle check valve is installed between the directional valve and the subplate.

Pilot flow limitation

With pilot-operated directional valves, the throttle check valve can be applied for switching time adjustment (pilot flow limitation). In this case, it is installed between the pilot control valve and the main valve.

Supply throttling

Internal hexagon with scale
Direct actuated
Maximum operating pressure 315 bar
Maximum flow 160 l/min
Size 10
Component series 3X

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Spool symbol	A1 → A2 or A2 → A1
Max. pressure	315
Productgroup ID	9,10,11,12,13,14
Number of ports	4
Type of actuation	with mechanical actuation
Size	10
Max. flow	160
Type of connection	Sandwich plate
Connection diagram NFPA	NFPA T3.5.1 R2-2002 D05
Size_CETOP	D05
Connection diagram	ISO 4401-05-04-0-05
Number of switching positions	2
Weight	2.98
Seals	FKM
Hydraulic fluid	HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR

01	02	03	04		05		06	07	08	09	10
Z2FS	10			–	3X	/					*

01	Throttle check valve, sandwich plate design	Z2FS
02	Size 10	10
03	Throttle check valve side A and B	– 1)
	Throttle check valve side A	A
	Throttle check valve side B	B
Adjustment type
04	Lockable rotary knob with scale	3 2)
	Spindle with internal hexagon and scale	5
	Rotary knob with scale	7
05	Component series 30 ... 39 (30 ... 39: unchanged installation and connection dimensions)	3X
06	With two throttle check valves, supply or discharge throttling (the valve can be rotated)	no code
	Supply throttling on side A (…A.–3X/S)	S
	Supply throttling on side B (…B.–3X/S)	S
	Discharge throttling on side A (…A.–3X/S2)	S2
	Discharge throttling on side B (…B.–3X/S2)	S2
Corrosion resistance
07	None	no code
07	Improved corrosion protection (240 h salt spray test according to EN ISO 9227)	J3
Seal material
08	NBR seals	no code
	FKM seals	V
	Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
Pilot oil duct
09	None	no code
09	Via channel X and Y	SO30
10	Further details in the plain text	*

1)	Identical adjustment types on sides A and B.
2)	Key with material no. R900008158 is included in the scope of delivery.

general

Size			10
Weight (approx.)		kg	3.1
Installation position			any
Ambient temperature range	NBR seals	°C	-30 … +80
Ambient temperature range	FKM seals	°C	-20 … +80

hydraulic

Size			10
Maximum operating pressure		bar	315
Maximum flow		l/min	160
Hydraulic fluid			see table
Hydraulic fluid temperature range	NBR seals	°C	-30 … +80
Hydraulic fluid temperature range	FKM seals	°C	-20 … +80
Viscosity range		mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid 1)			Class 20/18/15 according to ISO 4406 (c)

1)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards	Data sheet
Mineral oil		HL, HLP	FKM, NBR	DIN 51524	90220
Bio-degradable 1)	Insoluble in water	HETG	FKM	ISO 15380	90221
		HEES	FKM
	Soluble in water	HEPG	FKM	ISO 15380
Flame-resistant	Water-free	HFDU (glycol base)	FKM	ISO 12922	90222
		HFDU (ester base) 1)	FKM
	Containing water	HFC (Fuchs Hydrotherm 46M, Petrofer Ultra Safe 620)	NBR	ISO 12922	90223
Important information on hydraulic fluids: For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.). The ignition temperature of the hydraulic fluid used must be 50 K higher than the maximum surface temperature. Flame-resistant – containing water: Maximum pressure differential 210 bar, otherwise, increased cavitation erosion Life cycle as compared to operation with mineral oil HL, HLP 30 … 100% Maximum hydraulic fluid temperature 60 °C Bio-degradable and flame-resistant: If this hydraulic fluid is used, small amounts of dissolved zinc may get into the hydraulic system.

1)	Not recommended for corrosion-protected version "J3" (contains zinc)

For applications outside these parameters, please consult us!

(measured with HLP46, ϑoil = 40 ±5 °C)

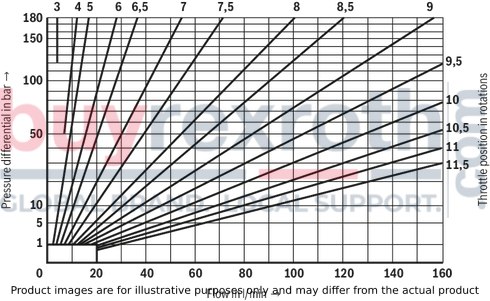

Δp-qV characteristic curves (via check valve)

Δp-qV characteristic curves (constant throttle position)

Supply throttling "S"

Version „‒…SO30“

Discharge throttling "S2"

Version „‒…SO30“

Supply throttling "S"

Version „A…SO30“

Discharge throttling "S2"

Version „A…SO30“

Supply throttling "S"

Version „B…SO30“

Discharge throttling "S2"

Version „B…SO30“

➀ = component side

➁ = plate side

Notices:

Deviating from ISO 4401, port T is called TA and port T1 is called TB in this data sheet. Version "SO30" is shown. The standard version does not have ports X and Y.

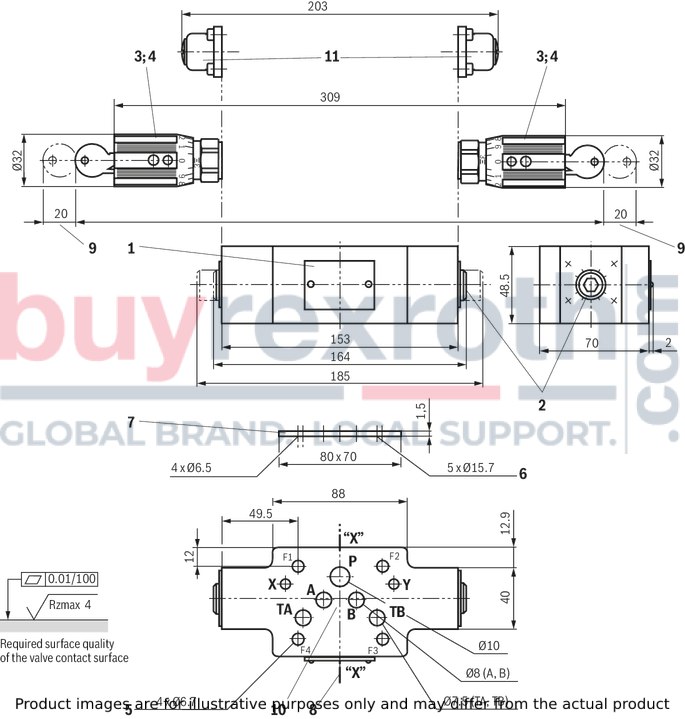

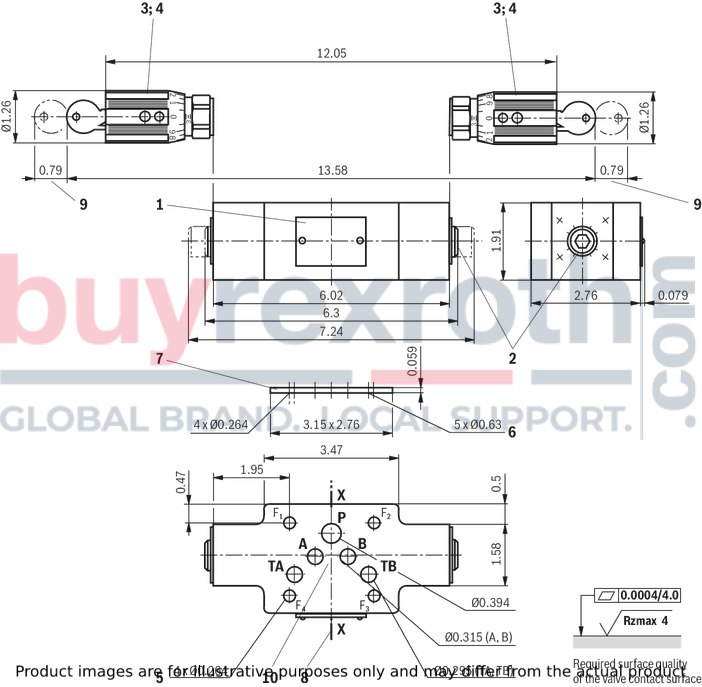

Dimensions: Version "–"

(dimensions in mm)

Dimensions in mm

1	Name plate
2	Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow
3	Adjustment type "3"
4	Adjustment type "7"
5	4 through holes for valve mounting
6	Identical seal rings for ports A, B, P, TA, TB
7	R-ring plate
8	Modification from supply to discharge throttling is realized by rotation of the device around axis "X" – "X" (version "–" only)
9	Space required to remove the key
10	Porting pattern according to ISO 4401-05-04-0-05
11	Version "J" To adjust the valve, disassemble the slotted screw. Further procedure see position 2 (adjustment type "5"). After setting of the valve, assemble the slotted screw.

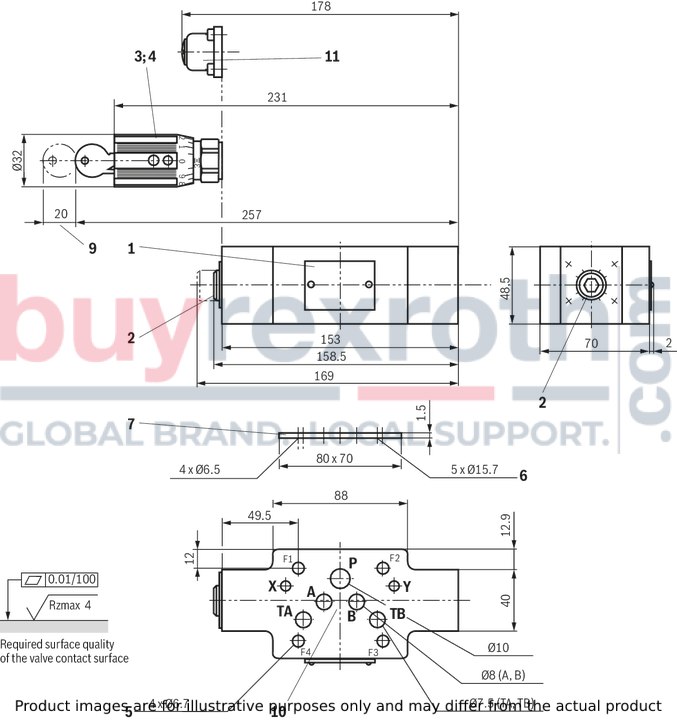

Dimensions: Version "A"

(dimensions in mm)

Dimensions in mm

1	Name plate
2	Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow
3	Adjustment type "3"
4	Adjustment type "7"
5	4 through holes for valve mounting
6	Identical seal rings for ports A, B, P, TA, TB
7	R-ring plate
9	Space required to remove the key
10	Porting pattern according to ISO 4401-05-04-0-05
11	Version "J" To adjust the valve, disassemble the slotted screw. Further procedure see position 2 (adjustment type "5"). After setting of the valve, assemble the slotted screw.

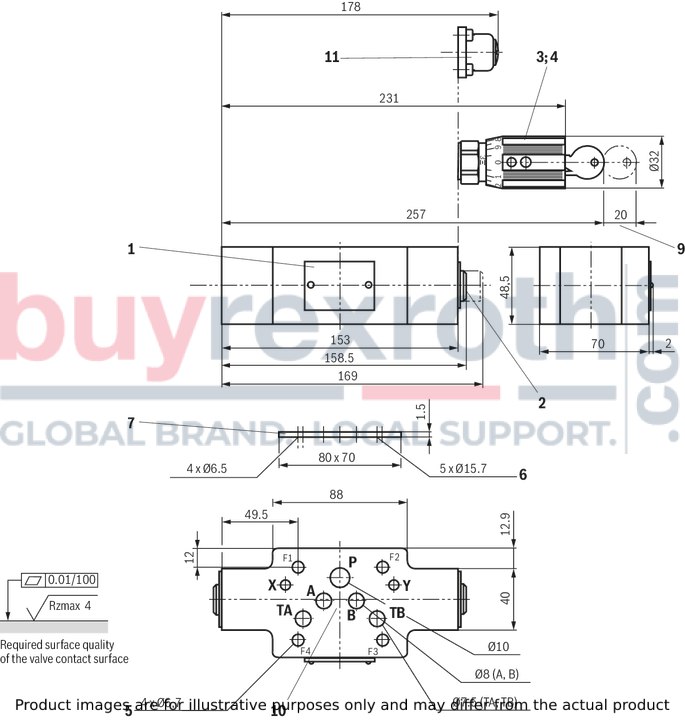

Dimensions: Version "B"

(dimensions in mm)

Dimensions in mm

1	Name plate
2	Adjustment type “5” – spindle for changing the flow cross-section (internal hexagon SW8) Left rotation = higher flow Right rotation = lower flow
3	Adjustment type "3"
4	Adjustment type "7"
5	4 through holes for valve mounting
6	Identical seal rings for ports A, B, P, TA, TB
7	R-ring plate
9	Space required to remove the key
10	Porting pattern according to ISO 4401-05-04-0-05
11	Version "J" To adjust the valve, disassemble the slotted screw. Further procedure see position 2 (adjustment type "5"). After setting of the valve, assemble the slotted screw.

Notices:

Deviating from ISO 4401, port T is called TA and port T1 is called TB in this data sheet. The dimensions are nominal dimensions which are subject to tolerances. Version "SO30" is shown. The standard version does not have ports X and Y.

Valve mounting screws (separate order)

4 hexagon socket head cap screws ISO 4762 - M6 - 10.9

4 hexagon socket head cap screws 1/4-2 UNC

Notice:

Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.

Dimensions in mm

THROTTLE CHECK VALVE Z2FS10A5-3X/S2V

Manufacturer: Bosch Rexroth

Material #: R900523578

Model : Z2FS10A5-3X/S2V

Availability: 1 In Stock

This product is eligible for factory repair.

general

hydraulic

(measured with HLP46, ϑoil = 40 ±5 °C)

Δp-qV characteristic curves (via check valve)

Δp-qV characteristic curves (constant throttle position)

Supply throttling "S"

Discharge throttling "S2"

Supply throttling "S"

Discharge throttling "S2"

Supply throttling "S"

Discharge throttling "S2"

Dimensions: Version "–"

Dimensions: Version "A"

Dimensions: Version "B"
