PRESSURE RELIEF VALVE DBWC 30 B2-5X/200YS6EG24N9K4R12/12

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

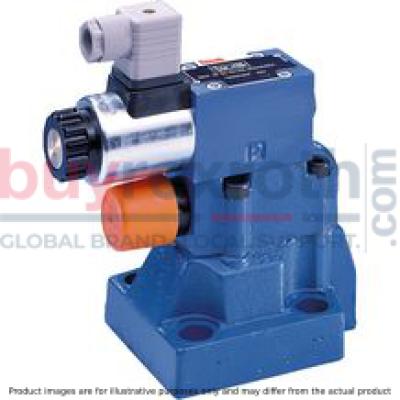

The Bosch Rexroth DBWC 30 B2-5X/200YS6EG24N9K4R12/12 (R978003727) is a sophisticated industrial hydraulic valve designed for high-performance applications. This pilot-operated pressure relief valve is engineered to provide reliable pressure limitation up to its setting value. It features solenoid unloading through an integrated directional spool valve and offers a pressure adjustment range of up to 350 bar. The DBWC 30 B2-5X/200YS6EG24N9K4R12/12 is equipped with a P T spool symbol and can withstand a maximum pressure of 350 bar. With its subplate mounting design, the valve adheres to ISO standards for porting patterns, ensuring compatibility and ease of integration into various hydraulic systems. The electrical connection is facilitated through a Connector with 2+PE poles according to EN 175301-803 standards, and the device operates on a supply voltage of 24 VDC. This model has two switching positions and comes with NBR seals, making it suitable for use with different hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC. The maximum flow capacity ensures efficient operation within hydraulic circuits. Additionally, the valve features multiple actuation types including rotary knob options – both lockable and with scale – as well as sleeve adjustments for precise control. The DBWC series valves are particularly noted for their switching shock damping capability. This feature helps in delaying the opening from B to T connections, thereby reducing pressure peaks and acoustic decompression shocks in return lines which enhances system longevity and performance. In summary, the Bosch Rexroth DBWC 30 B2-5X/200YS6EG24N9K4R12/12 is an advanced hydraulic component that offers robust performance in controlling operating pressures within industrial applications while providing options for solenoid actuation and mechanical adjustments in various configurations.
