4WRZ 10 XA00-7X/6EG24N9K4/D3V-114

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

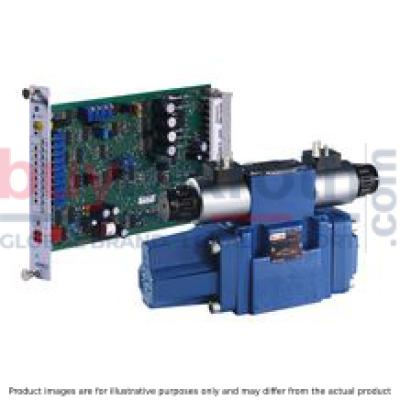

The Bosch Rexroth 4WRZ 10 XA00-7X/6EG24N9K4/D3V-114 (R900971521) is a pilot-operated proportional directional valve that is designed to control the direction and size of flow in hydraulic systems. This model, part of the WRZE series, features proportional solenoids for actuation and includes an additional port R only for NG. The valve is composed of a pilot control valve with proportional solenoids and a main valve with a main control spool and centering spring. In operation, when the solenoids are de-energized, the main control spool is held centrally by the centering spring. As one of the solenoids is energized, it proportionally moves the pilot control valve which in turn adjusts the position of the main control spool based on the electric input signal. This action allows for precise flow direction from P to A and B to T or vice versa through orifice-type cross-sections with progressive flow characteristics. The pilot oil supply can be routed internally via port P or externally via port X. An optional manual override feature allows for manual adjustment of the control spool without solenoid activation; however, caution must be exercised as accidental activation could lead to unintended machine movements. This Bosch Rexroth valve does not include integrated electronics OBE and requires subplate mounting according to ISO standards. It should be noted that internal leakage may occur over time due to its design principle. The spring-centered control spool ensures reliable return to neutral position when not actuated. This valve's capabilities make it suitable for various applications where precise flow direction and volume control are necessary within hydraulic systems.
