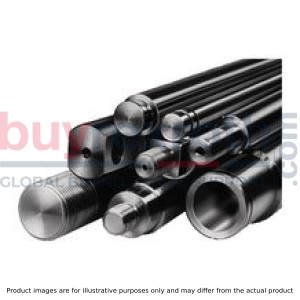

SOLID SHAFT WV-16H6-CR

Manufacturer: Bosch Rexroth

Material #: R100001660

Model : SOLID SHAFT WV-16H6-CR


***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth SOLID SHAFT (R100001660) is a precision-engineered component designed for use in linear motion applications. This solid shaft is made from heat-treated steel and features a hard chrome plating that provides superior corrosion protection on its outer diameter. With a shaft diameter tolerance classified under grade h6, it ensures a high-precision fit and smooth operation when paired with compatible linear bushings. The chrome plating thickness of approximately 20 µm not only enhances the shaft's hardness to around 900 HV but also contributes to its excellent surface finish with a roughness of RA 0.3 µm. The depth of hardness is maintained at a minimum of 0.5 mm, which ensures that the shaft can withstand wear and maintain its integrity over prolonged use. The WV-16H6-CR model boasts an impressive straightness tolerance of up to 5 µm for lengths under 1 meter, measured according to ISO standards, which guarantees consistent, reliable performance in precise applications. For longer overall lengths, sections can be combined seamlessly as the linear bushings can be rolled over joints without interruption. This solid shaft has been designed with optimal dimensions and mechanical properties to facilitate its use in various linear guide systems. It has a mass of 2.57 kg/m and offers maximum usable lengths (Lmax), ensuring versatility across different installation requirements. Overall, the Bosch Rexroth SOLID SHAFT is an essential component for any setup requiring precise linear movement, providing durability, exceptional performance, and compatibility with a range of linear bushing types. Its meticulous design and manufacturing process ensure that it meets rigorous standards for straightness, roundness, and cylindricity tolerances – making it an ideal choice for high-demand industrial applications.

This product is not available. CLICK HERE to create a support ticket for us to locate your part or a suitable replacement
