SVRV12-26F-0-N-00-18 CARTRIDGE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

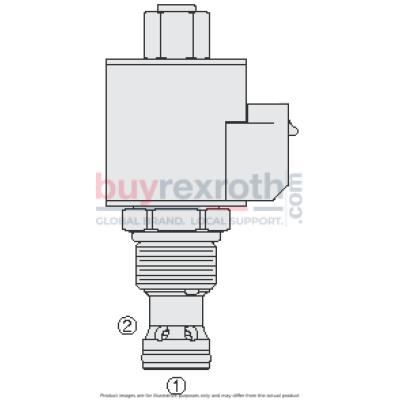

The Hydraforce 5635120.18 (5635120.18) is a screw-in, cartridge-style, pilot-operated, spool-type relief valve designed for use as a pressure-limiting device in demanding hydraulic circuits requiring fast response and low hysteresis. This two-stage valve operates by blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the pilot relief, which then allows the main stage to shift and open port 1 to port 2. It is important to note that this valve is not suitable for cross-over relief applications. Key features include adjustments that cannot be backed out of the valve, preventing springs from going solid, and a hardened spool and cage for enhanced durability. The RV12-26X also offers optional spring ranges up to 240 bar (3500 psi), ensuring rapid and smooth responses to pressure surges. Its cost-effective cavity design makes it an efficient choice for various hydraulic applications where reliable pressure control is essential.
