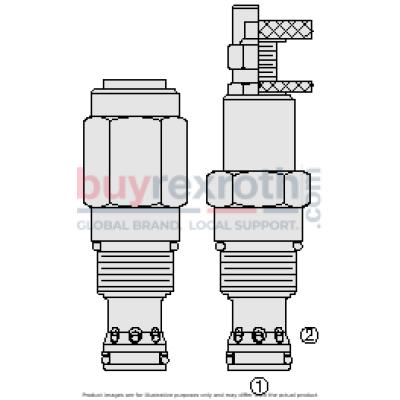

RV52-26H-0-P-50/33 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5624401.33 (Material Number 5624401.33) is a screw-in, cartridge-style, pilot-operated (two-stage), spool-type relief valve designed for use as a pressure-limiting device in demanding hydraulic circuits that require fast response and low hysteresis. This valve effectively blocks flow from port 1 to port 2 until sufficient pressure at port 1 activates the pilot relief, allowing the main stage to shift and open the passage between the two ports. It is important to note that this valve is not suitable for cross-over relief applications. The RV52-26X features adjustments that cannot be backed out of the valve, with adjustment options A, B, and C incorporating positive stops to prevent springs from going solid. Constructed with a hardened spool and cage, this valve ensures long life and offers rapid, smooth responses to pressure surges. Additionally, it boasts a cost-effective cavity design, making it an efficient choice for hydraulic systems requiring reliable pressure management solutions.
