Manufacturer: Hydraforce
Material #: 5624401315
Model : RV52-26H-0-P-50/31.5 RELIEF VALVE
$81.00 USD
Availability: 12 In Stock
Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.| Qty | Price | Savings |
|---|---|---|
| 5-10 | $79.38 USD | $1.62 USD |
| 11+ | $78.57 USD | $2.43 USD |
Qty: Delivered as early as March 3, 2026 when ordered in
| Ratings: | Pressure Ratings Pressure rating: 344.7 bar (5000 psi) Port 1 103.4 bar (1500 psi) Port 2 Proof pressure: 689.5 bar (10000 psi) Burst pressure: 1379.0 bar (20000 psi) Crack pressure defined: Pressure evident at 7.6 lpm (2 gpm) Relief pressure range: 41.4 to 345 bar (600 to 5000 psi) From zero to maximum control current Flow Ratings Flow rating: 189.3 lpm (50 gpm) At max pressure Temperature Ratings Operating fluid temperature: -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (grv52-26x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |

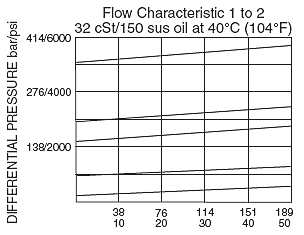

| Performance: |  |

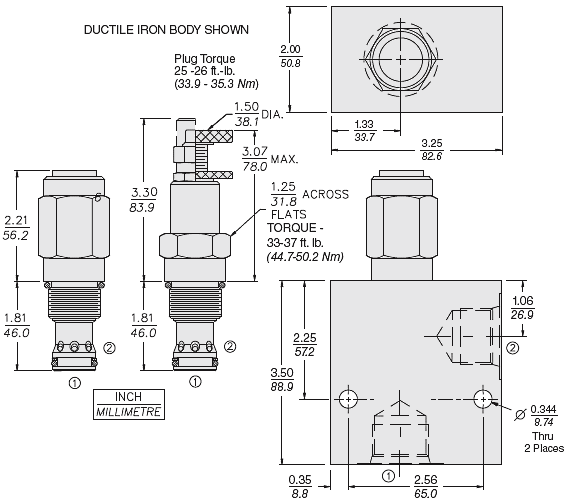

| Installation Specifications: | Cavity:
VC12-2 12-size-2-way Cavities Cartridge installation torque: 44.7 to 50.2 N-m (33 to 37 ft-lb) H style plug torque: 33.9 to 35.3 N-m (25 to 26 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION RV52-26F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane R Spring R 50 83 to 344.7 bar (1200 to 5000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
