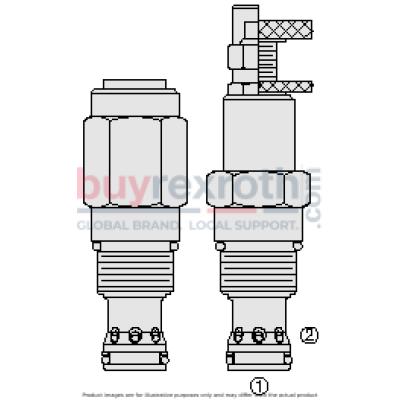

RV12-26C-0-N-35/35 RELIEF VALVE
Manufacturer: Hydraforce
Material #: 562320435
Model : RV12-26C-0-N-35/35 RELIEF VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5623204.35 (Material Number: 5623204.35) is a screw-in, cartridge-style, pilot-operated (two-stage), spool-type relief valve designed as a pressure-limiting device for demanding hydraulic circuits that require fast response and low hysteresis. This valve effectively blocks flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the pilot relief, which then allows the main stage to shift and open port 1 to port 2. It's important to note that this valve is not suitable for cross-over relief applications. Key features include adjustments that cannot be backed out of the valve, preventing springs from going solid, and a hardened spool and cage for enhanced durability. The RV12-26X model offers optional spring ranges up to 240 bar (3500 psi), ensuring rapid and smooth response to pressure surges while maintaining cost-effectiveness with its cavity design.
$78.50 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as December 16, 2026
| Ratings: | Pressure Ratings Pressure rating: 241.3 bar (3500 psi) Port 1 103.4 bar (1500 psi) Port 2 Proof pressure: 689.5 bar (10000 psi) Burst pressure: 1379.0 bar (20000 psi) Crack pressure defined: Pressure evident at 7.6 lpm (2 gpm) Flow Ratings Flow rating: 170.3 lpm (45 gpm) At max pressure Maximum internal leakage: 197 ml/min (12 in³/min) At port 2 at 85% of nominal setting Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (grv12-26x) |
| Operating Parameters: | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC12-2 12-size-2-way Cavities Cartridge installation torque: 44.7 to 50.2 N-m (33 to 37 ft-lb) 33.9 to 35.3 N-m (25 to 26 ft-lb) H-style plug Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION RV12-26F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 04 6.9 to 27.6 bar (100 to 400 psi) Spring Range R 15 3.8 to 110.3 bar (200 to 1600 psi) Spring Range R 30 31 to 206.9 bar (450 to 3000 psi) Spring Range R 35 34.5 to 241.5 bar (500 to 3500 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
