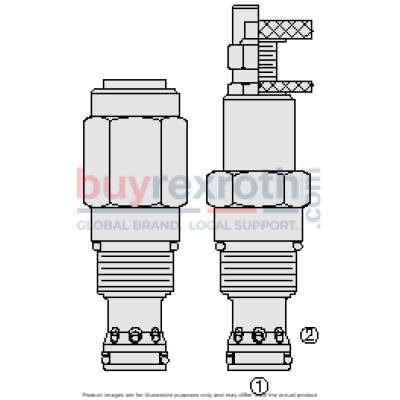

RV12-26A-0-N-04/M21 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5623000.M21 (Material Number: 5623000.M21) is a high-performance screw-in, cartridge-style relief valve designed for pressure limiting in demanding hydraulic circuits. This pilot-operated, two-stage spool type valve efficiently manages flow by blocking it from port 1 to port 2 until a specific pressure at port 1 activates the pilot relief. Once activated, the main stage shifts to open the flow path between ports. Notably, this valve is not suitable for cross-over relief applications. Key features include non-reversible adjustments that prevent backing out and ensure springs do not go solid, along with a hardened spool and cage that enhance longevity. The RV12-26X offers optional spring ranges up to 240 bar (3500 psi) and provides rapid, smooth responses to pressure surges, making it a cost-effective choice for hydraulic systems requiring fast response and low hysteresis.
