PR12-36H-0-P-30/M200 REDUCING VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

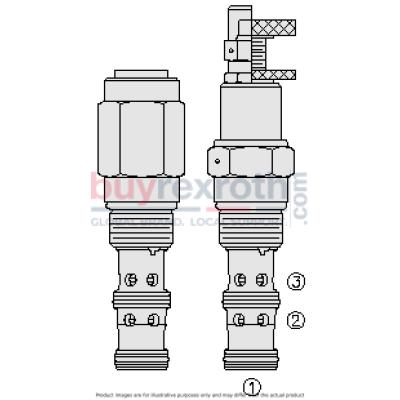

The Hydraforce 5616942P.M200 (5616942P.M200) is a spool type, pilot-operated hydraulic pressure reducing/relieving valve specifically designed to function as a pressure regulating device for secondary circuits. This valve, known as the PR12-36X, features an internal pilot and internal spring chamber drain. During operation, it permits bidirectional flow from port 2 to port 1 while maintaining a constant drain at port 3 in its steady state. Once the pressure at port 1 reaches a predetermined level, the spool shifts to limit the inlet flow from port 2, thereby regulating the pressure at port 1. In this mode, it also relieves excess pressure from port 1 to port 3. Notably, tank pressure is additive to the regulated pressure. The design ensures that adjustments cannot be backed out of the valve and prevents springs from becoming solid during operation. The PR12-36X offers optional spring ranges up to 207 bar (3000 psi), providing versatility for various hydraulic applications requiring precise pressure control and reliability under different operating conditions.
