PR12-36H-0-N-30/22 REDUCING VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

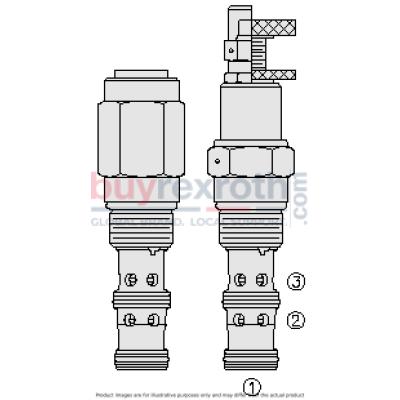

The Hydraforce 5616942.22 (5616942.22) is a spool type, pilot operated hydraulic pressure reducing/relieving valve, known for its robust design and efficient pressure regulation capabilities in secondary circuits. This valve features an internal pilot and internal spring chamber drain, ensuring seamless operation by allowing bidirectional flow from port 2 to port 1 in its steady state while keeping the spring chamber drained at port 3. When a predetermined pressure is reached at port 1, the spool shifts to restrict inlet flow from port 2, effectively regulating the pressure at port 1. Additionally, the valve can relieve excess pressure by allowing flow from port 1 to port 3. It is important to note that tank pressure adds to the regulated pressure in this configuration. The PR12-36X model incorporates adjustments that cannot be backed out of the valve and includes features that prevent springs from going solid, enhancing durability and reliability. Optional spring ranges are available up to 207 bar (3000 psi), providing flexibility for various applications where precise pressure control is essential.
