PR12-36H-0-N-30/16 REDUCING VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

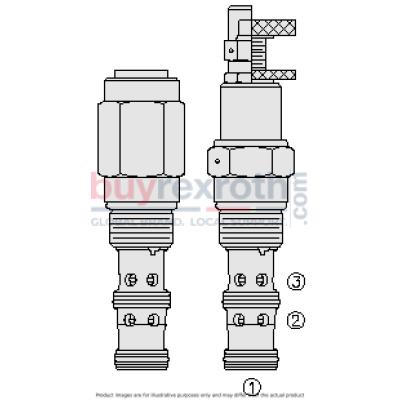

The Hydraforce 5616942.16 (5616942.16) is a spool type, pilot operated hydraulic pressure reducing/relieving valve specifically designed for regulating pressure in secondary circuits. Known as the PR12-36X, this valve features an internal pilot and an internal spring chamber drain, facilitating its function as a pressure regulating device. In its default state, the PR12-36X enables bidirectional flow between port 2 and port 1 while maintaining a constant spring chamber drain at port 3. When the pressure at port 1 reaches a predetermined level, the spool shifts to limit inlet flow from port 2, effectively managing the pressure at port 1. Additionally, this valve can relieve excess pressure from port 1 to port 3. It is important to note that tank pressure adds to the regulated pressure in this system. The design includes adjustments that cannot be backed out of the valve and ensures that springs do not reach their solid state during operation. The PR12-36X offers optional spring ranges up to 207 bar (3000 psi), providing flexibility for various applications where precise pressure regulation is required.
