PR12-36H-0-P-04/03.75 REDUCING VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

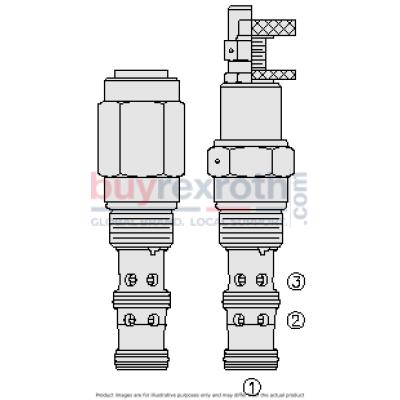

The Hydraforce 5616940P.03.75 (5616940P.03.75) is a spool type, pilot operated, hydraulic pressure reducing/relieving valve designed for precise pressure regulation in secondary circuits. This model, known as the PR12-36X, features an internal pilot and a spring chamber drain that operates internally to maintain optimal performance. In its default state, the valve allows bidirectional flow between port 2 and port 1 while keeping the spring chamber constantly drained at port 3. When a predetermined pressure level is reached at port 1, the spool shifts to restrict flow from port 2, effectively regulating the pressure at port 1 and relieving excess pressure to port 3. It's important to note that any tank pressure will add to the regulated pressure of this system. The valve includes several key features designed for reliability and flexibility in various applications. Notably, it has adjustments that cannot be backed out of the valve, ensuring stability during operation and preventing springs from becoming solid under extreme conditions. Additionally, this model offers optional spring ranges up to 207 bar (3000 psi), allowing for customization based on specific application requirements. The Hydraforce PR12-36X is well-suited for applications where precise control over hydraulic pressures is essential, providing both reducing and relieving functions within a single unit.
