PR12-36H-0-N-04/04 REDUCING VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

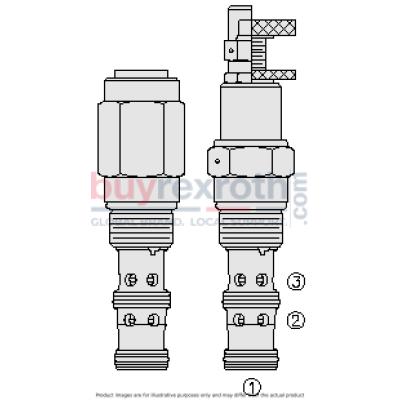

The Hydraforce 5616940.04 (5616940.04) is a spool type, pilot operated hydraulic pressure reducing/relieving valve, specifically designed for use as a pressure regulating device in secondary circuits. This valve, known as the PR12-36X, features an internal pilot and internal spring chamber drain system. In its steady state, it allows bidirectional flow from port 2 to port 1 while maintaining a constant drain at port 3. When the predetermined pressure at port 1 is reached, the spool shifts to restrict inlet flow from port 2 to regulate pressure at port 1, and it can also relieve pressure from port 1 to port 3. An important note about this valve is that tank pressure adds to the regulated pressure. The valve includes features such as adjustments that cannot be backed out and designs that prevent springs from reaching solid states. It also offers optional spring ranges up to 207 bar (3000 psi), providing flexibility in various hydraulic applications where precise pressure regulation is critical.
