PR12-36B-0-N-15/05 REDUCING VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

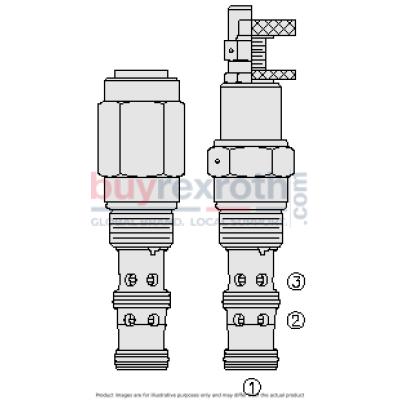

The Hydraforce 5616914.05 (5616914.05) is a spool type, pilot operated, hydraulic pressure reducing/relieving valve specifically designed for regulating pressure in secondary circuits. This valve features an internal pilot and spring chamber drain, facilitating its role as a pressure regulating device. In its normal operating state, the PR12-36X permits bidirectional flow from port 2 to port 1 while maintaining constant drainage at port 3. When a set pressure is reached at port 1, the spool shifts to limit inlet flow from port 2, effectively managing the pressure at port 1. Additionally, in this mode, the valve can relieve excess pressure from port 1 to port 3. It's important to note that any tank pressure will be additive to the regulated pressure. The design of this valve incorporates adjustments that cannot be backed out, ensuring that springs do not become solid during operation. It also offers optional spring ranges up to 207 bar (3000 psi), making it adaptable for various applications requiring precise pressure control and relief functions within hydraulic systems.
