CR10-28B-0-N-24/M19 CROSS OVER REL
Manufacturer: Hydraforce
Material #: 5613964M19
Model : CR10-28B-0-N-24/M19 CROSS OVER REL
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

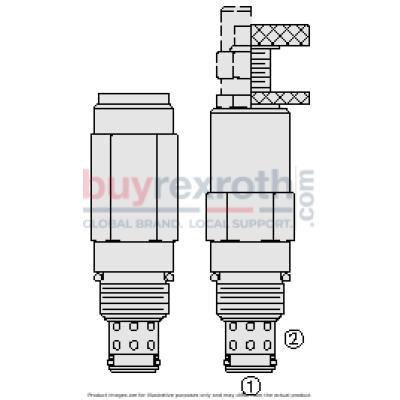

The Hydraforce 5613964.M19 (5613964.M19) is a screw-in, cartridge-style, direct-acting, differential area, poppet-type, bidirectional hydraulic relief valve. It is designed to manage hydraulic pressure by allowing flow between ports when pressure exceeds the nominal setting value. This valve features a unique operation where back pressure at one port will affect the nominal setting of the opposite port on a 1:1 basis. The design ensures that adjustments cannot be backed out of the valve and prevents springs from going solid, enhancing reliability and safety in operation. Constructed with a hardened spool and cage, this valve promises long service life and durability. Its industry-common size makes it versatile for integration into various hydraulic systems where reliable pressure control is essential.
$114.00 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as December 16, 2026
| Ratings: | Pressure Ratings Pressure rating: 241.3 bar (3500 psi) Proof pressure: 345.6 bar (5000 psi) Burst pressure: 896.3 bar (16000 psi) Reseat pressure: 90% of crack pressure at 0.95 lpm (0.25 gpm) Crack pressure: 10.5 bar (150 psi) Maximum difference both directions Flow Ratings Flow rating: 60 lpm (16 gpm) Maximum internal leakage: 33 ml/min (2 in³/min) When reseat to 80% of crack pressure Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters: | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 33.9 to 36.6 N-m (25 to 27 ft-lb) 68 N-m (50 ft-lb) Plug torque: 33.9 N-m (25 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION CR10-28F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane R Spring R 24 14 to 168 bar (200 to 2400 psi) Spring Range R 30 160 to 210 bar (2300 to 3000 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
