RV10-28A-8T-N-35/25 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

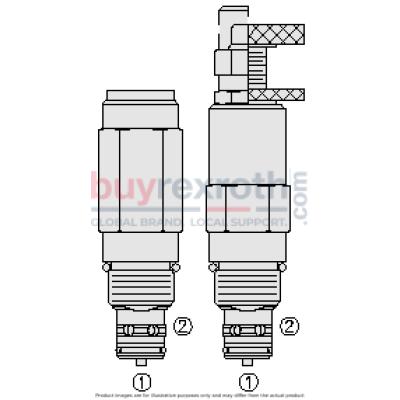

The Hydraforce 5613731.25 (5613731.25) is a versatile screw-in, cartridge-style pilot-operated relief valve with a reverse free flow check valve, specifically designed to function as a pressure-limiting device in demanding hydraulic circuits. This model, known as the RV10-28X, is well-suited for applications requiring fast response times, low hysteresis, minimal leakage, and low pressure override capabilities along with reverse free flow features. The RV10-28X effectively blocks flow from port 1 to port 2 until the pressure at port 1 reaches a sufficient level. Once this threshold is met, the relief flow path allows for fluid movement from port 1 to port 2. Additionally, it supports reverse flow from port 2 to port 1 when the pressure at port 2 exceeds that of port 1. This model offers a variety of adjustment options which are securely designed to prevent adjustments from being unintentionally backed out of the valve. It can be operated either in relief valve mode or check valve mode and comes available in several pressure ranges to suit specific application needs. The RV10-28X is constructed with a hardened spool and cage ensuring long life and durability under rigorous conditions while maintaining industry-common sizing for compatibility with existing systems.
