RV10-28H-0-N-35/32 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

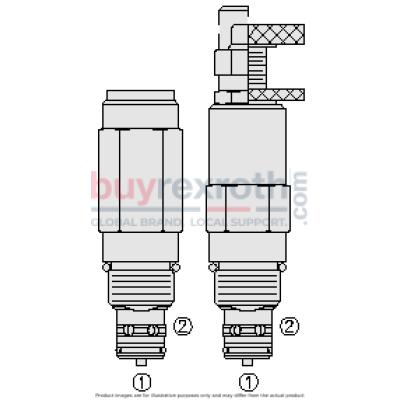

The Hydraforce 5613704.32 (5613704.32) is a robust screw-in, cartridge-style pilot-operated relief valve with a reverse free flow check valve, designed to serve as a pressure-limiting device in demanding hydraulic circuits. This model is particularly suitable for applications requiring fast response, low hysteresis, low leakage, and minimal pressure override. The RV10-28X model effectively blocks flow from port 1 to port 2 until the pressure at port 1 reaches a sufficient level, at which point it allows relief flow from port 1 to port 2. Additionally, it enables reverse flow from port 2 to port 1 when the pressure at port 2 exceeds that at port 1. The valve offers various adjustment options that are secured against being backed out of the valve itself and can operate either in relief valve mode or check valve mode. It supports several pressure ranges and is constructed with hardened spool and cage components for enhanced durability and longevity. The RV10-28X's industry-common size ensures compatibility with a wide range of hydraulic systems.
