RV10-28C-0-N-35/15 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

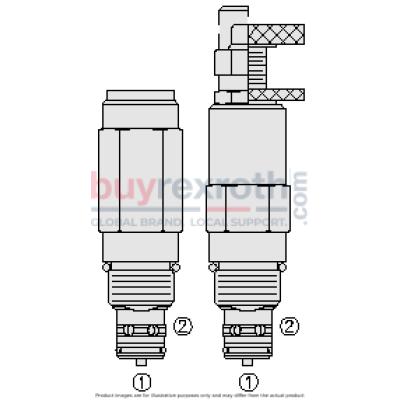

The Hydraforce RV10-28C-0-N-35/15 (Material Number: 5613702.15) is a robust screw-in, cartridge-style, pilot-operated relief valve with an integrated reverse free flow check valve. Designed to function as a pressure-limiting device in high-demand hydraulic circuits, this valve excels in providing fast response times, low hysteresis, minimal leakage, and low-pressure override. It effectively blocks flow from port 1 to port 2 until the pressure at port 1 reaches a specified threshold. In scenarios where reverse flow is required, it allows flow from port 2 to port 1 when the pressure at port 2 surpasses that at port 1. This model offers various adjustment options that are securely retained within the valve body and can be configured to operate in either relief or check valve modes. It accommodates multiple pressure ranges with a hardened spool and cage construction for enhanced longevity. The RV10-28C-0-N-35/15 supports industry-common sizes and features a maximum pressure rating of 289.6 bar (4200 psi), proof pressure up to 620.5 bar (9000 psi), and burst pressure reaching 1241.1 bar (18000 psi). It allows for an adjustable pressure range between 13.8 to 289.6 bar (200 to 4200 psi). The valve's flow rating reaches up to 113.6 lpm (30 gpm) from port 1 to port 2 with minimal internal leakage of just 0.53 ml/min under maximum settings. Its rapid response time is notable at just 0.06 seconds transitioning from relief valve mode to check valve mode under specified conditions. Designed for versatile temperature conditions, the operating fluid temperature ranges vary based on seal type: -40 to 100 \u00b0C with Buna N seals, -26 to 204 \u00b0C with fluorocarbon seals, and -54 to107 \u00b0C with polyurethane seals. The unit weighs approximately 0.27 kg and fits into VC10-2 cavities requiring installation torque between 33.9 to36.6 N-m.
