RV10-28A-0-N-35/M180 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

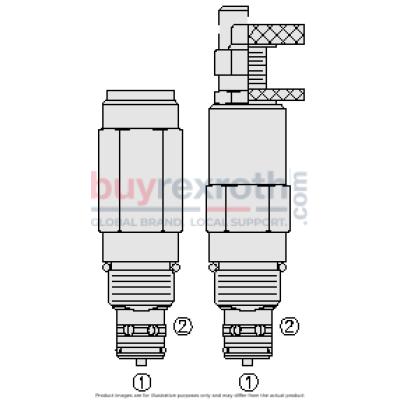

The Hydraforce 5613700.M180 (5613700.M180) is a screw-in, cartridge style, pilot operated relief valve with a reverse free flow check valve, specifically designed for use as a pressure limiting device in demanding hydraulic circuits. This model, known as the RV10-28X, excels in applications requiring fast response times, low hysteresis, minimal leakage, and low pressure override. It efficiently blocks flow from port 1 to port 2 until the pressure at port 1 reaches a sufficient level. Once this occurs, it allows relief flow from port 1 to port 2. Conversely, reverse flow from port 2 to port 1 is enabled when the pressure at port 2 exceeds that at port 1. The RV10-28X offers a variety of adjustment options that are secure against being backed out of the valve and can function in both relief valve and check valve modes. It supports several pressure ranges and features a hardened spool and cage to ensure long-lasting performance. This model is also noted for its industry-common size, making it versatile for integration into existing systems.
