RV10-28A-0-N-35/23 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

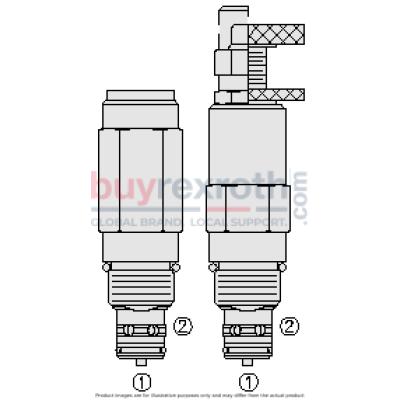

The Hydraforce 5613700.23 (5613700.23) is a versatile screw-in, cartridge-style valve designed for demanding hydraulic circuits that require precise pressure control and reverse free flow capabilities. Known as the RV10-28X, this pilot-operated relief valve features a reverse free flow check valve, making it ideal for applications needing fast response, low hysteresis, minimal leakage, and low pressure override. The RV10-28X operates by blocking flow from port 1 to port 2 until the pressure at port 1 reaches a specified threshold. Once this occurs, relief flow is allowed from port 1 to port 2. Additionally, the valve supports reverse flow from port 2 to port 1 when the pressure at port 2 exceeds that at port 1. This product offers a variety of adjustment options that cannot be backed out of the valve, ensuring secure operation in both relief and check valve modes. It is available in several pressure ranges and is constructed with a hardened spool and cage for enhanced durability and long service life. The RV10-28X's industry-common size makes it adaptable for various hydraulic systems requiring reliable pressure limiting functions with additional reverse flow capabilities.
