RV10-26L-0-N-30/25 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

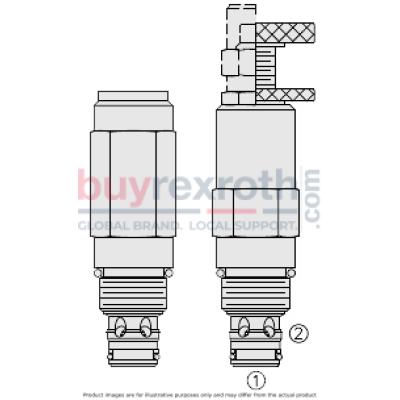

The Hydraforce 5613501.25 (Material Number: 5613501.25) is a screw-in, cartridge-style, pilot-operated (two-stage), spool-type hydraulic relief valve designed for pressure-limiting applications in demanding hydraulic circuits requiring fast response and low hysteresis. This valve operates by blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the piloting relief, allowing the main spool to shift and open the flow path between ports. Notably, this model cannot be used for cross-over relief applications. Key features include adjustments that cannot be backed out of the valve, with adjustment options A, B, and C featuring positive stops to prevent springs from going solid. The valve also incorporates a hardened spool and cage for extended durability and offers optional spring ranges up to 207 bar (3000 psi). Its design ensures a fast, smooth response to pressure surges and fits an industry-common cavity, making it suitable for various hydraulic system configurations where precise pressure control is critical.
