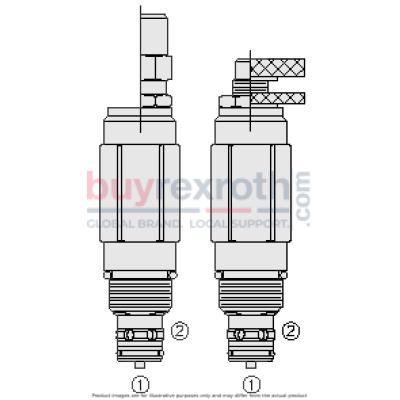

RV50-28C-0-P-50/30 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5613487P.30 (Material Number: 5613487P.30) is a high-performance RV50-28X screw-in, cartridge-style valve designed for use in demanding hydraulic circuits. This pilot-operated relief valve includes a reverse free flow check valve and serves as an effective pressure limiting device. It is particularly suitable for applications requiring fast response, low hysteresis, minimal leakage, and low pressure override. The valve operates by blocking flow from port 1 to port 2 until the pressure at port 1 reaches a sufficient level, enabling relief flow from port 1 to port 2. Additionally, it allows reverse flow from port 2 to port 1 when the pressure at port 2 exceeds that at port 1. With a high operating pressure rating of up to 345 bar (5000 psi), this valve offers various adjustment options that ensure settings remain secure without backing out of the valve. It can function in both relief valve mode and check valve mode, featuring a built-in reverse flow check valve for enhanced versatility. The hardened spool and cage construction contribute to its durability and long service life, while its fast response time makes it ideal for rapid operation scenarios. Furthermore, the RV50-28X fits into an industry-common cavity, allowing for straightforward integration into existing systems.
