RV50-28H-0-P-50/M310 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

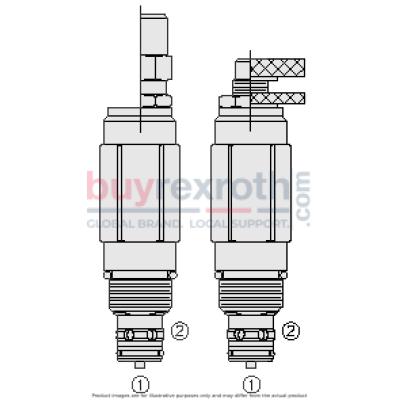

The Hydraforce 5613481P.M310 (5613481P.M310) is a versatile screw-in, cartridge-style pilot-operated relief valve with an integrated reverse free flow check valve. This product is designed to function as a pressure-limiting device in demanding hydraulic circuits, offering features such as fast response times, low hysteresis, minimal leakage, and low pressure override. It operates by blocking flow from port 1 to port 2 until the pressure at port 1 reaches a sufficient level to trigger relief flow. Additionally, it allows reverse flow from port 2 to port 1 when the pressure at port 2 exceeds that at port 1. The RV50-28X is rated for high operating pressures up to 345 bar (5000 psi) and provides various adjustment options that ensure adjustments are secure and cannot be backed out of the valve. This product can be utilized in both relief valve and check valve modes, thanks to its built-in reverse flow check valve. The hardened spool and cage construction contribute to its durability and long service life. The design also incorporates an industry-common cavity for ease of integration into existing systems.
